Veritas Superb wreck...here we go!

Discussion in 'Fettling Forum' started by Alex74, Mar 19, 2021.

  1. Alex74

    Alex74 United Kingdom Subscriber

    Offline
    Joined:
    Oct 13, 2019
    Messages:
    477
    Location:
    Faringdon, Oxon
    Hi all,

    apologies for the long ‘press silence’. Work and life have taken over during the last few weeks.

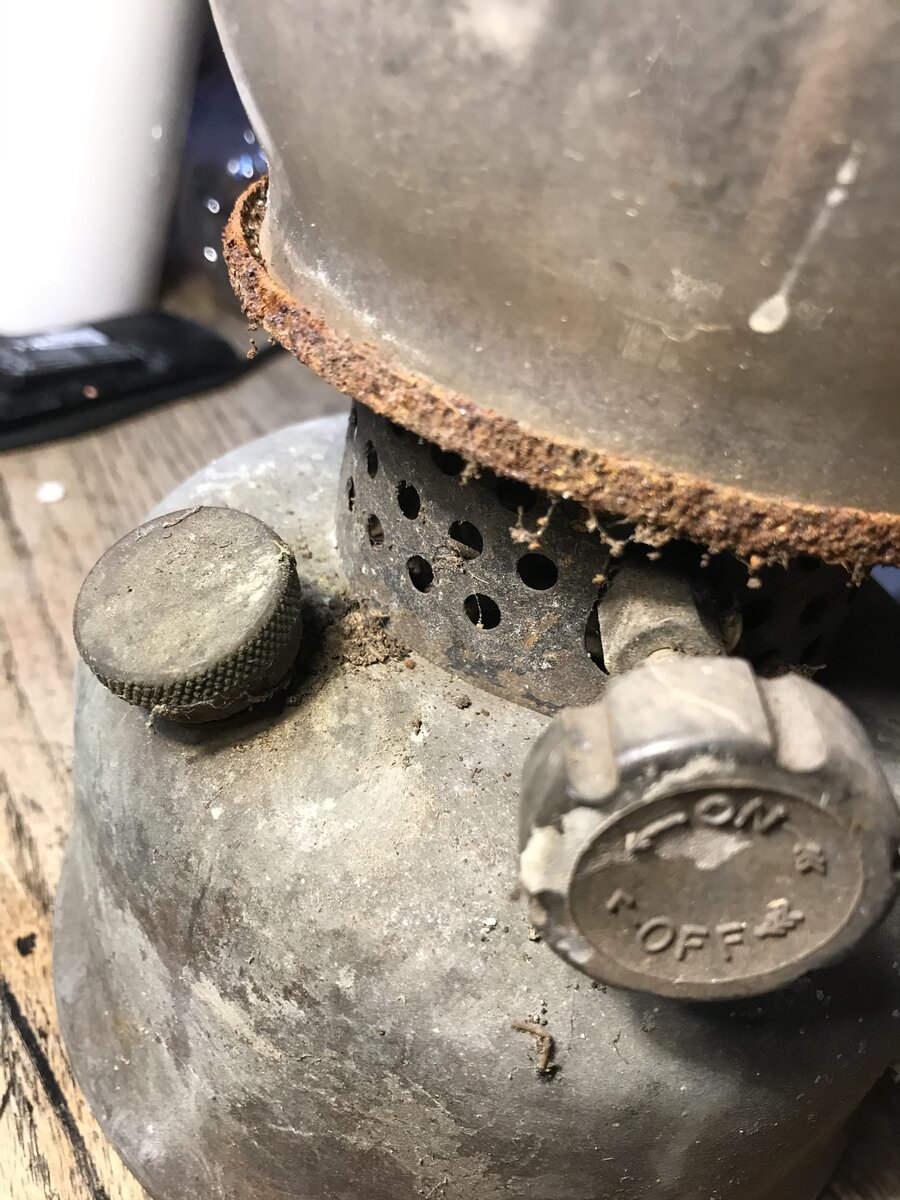

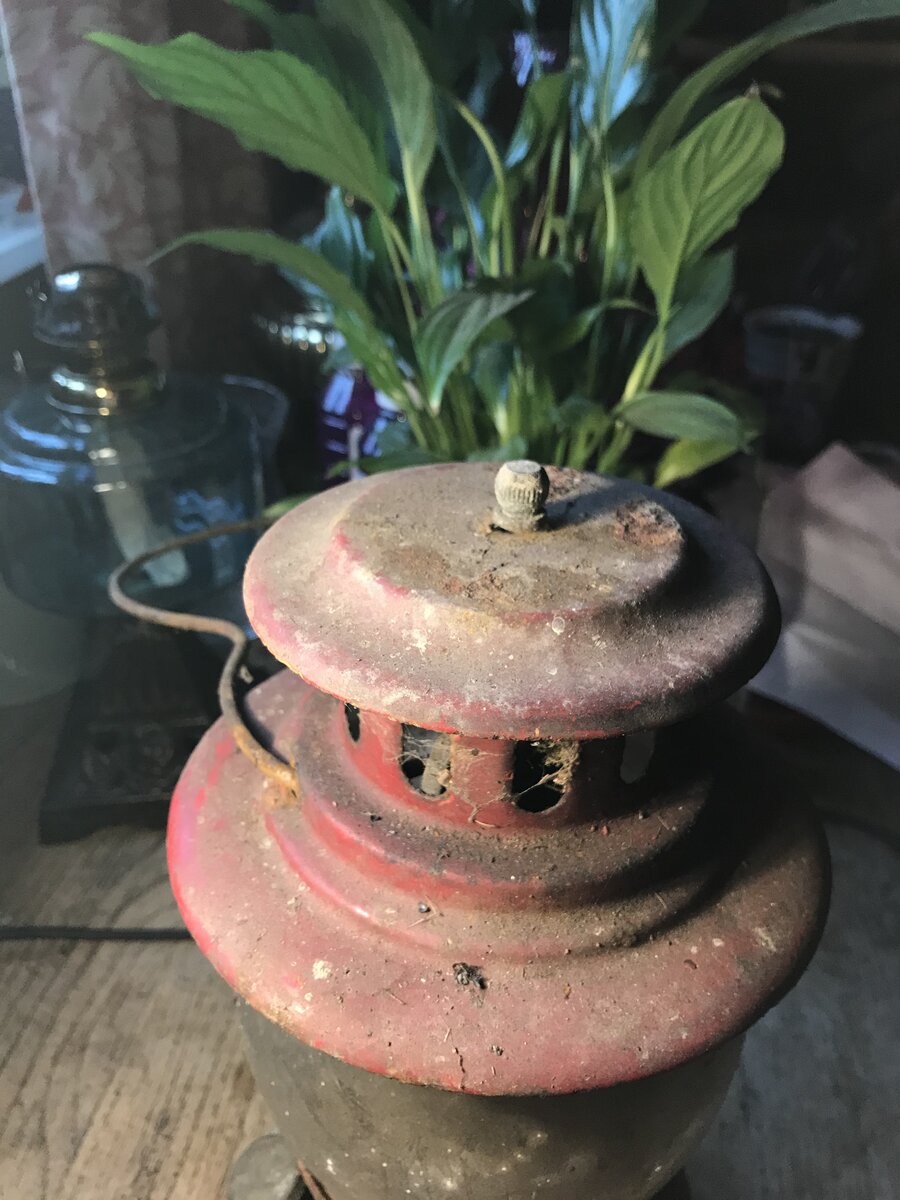

    Following the Primus 981 death wish and the Coleman 427 nightmare, here’s another nice wreck I’m just starting to tackle today. I think it’s a Veritas superb in brass (no nickel plating). I got it from a local salvage dealer a while back, along with a couple of Tilleys. Photos below. Please note the abundant collection of dead spiders, rust and dust inside it. Total dereliction?...

    I got a ‘154’ set of seals from the Fettle Box. Hopefully it’s the right set. Apart from taking everything apart gently, where would you start?!...:shock::roll:

    27D461D0-EE03-43BE-B225-A0801DF875D0.jpeg D62DFBCA-858C-429B-98E0-70704F270315.jpeg 445F2C84-17A2-4B1D-B967-E11E82C48C37.jpeg 65B45171-477F-4841-B390-999B085653F1.jpeg 0758A241-7F06-4B0E-B90B-D5309622665D.jpeg 464EEFE6-3612-49E0-9353-49CD026A8252.jpeg DE6FA245-419B-424D-BF20-A4B8389510C0.jpeg

  2. Fireexit1

    Fireexit1 United Kingdom Subscriber

    Offline
    Joined:
    Jun 13, 2020
    Messages:
    1,119
    Location:
    Brighton UK
    I was wondered where you had got to Alex. Well this looks like a challenge but from where I am looking it would appear a very viable resuscitation candidate. I guess it is going to come down to how much metal there still is on the bottom plate ! We all look forward to it's progress..
    good luck
    Chris

  3. JEFF JOHNSON

    JEFF JOHNSON United Kingdom Subscriber

    Offline
    Joined:
    Nov 28, 2010
    Messages:
    11,580
    Location:
    Shetland Islands UK..
    Happy fettling!:thumbup::thumbup:

  4. BigStevie

    BigStevie United Kingdom Subscriber

    Offline
    Joined:
    Dec 5, 2018
    Messages:
    1,928
    Location:
    Scottish Highlands
    I think I’d start with a long ponder and a stiff drink!

    As mentioned above, I guess it’s down to the level of corrosion. When I was a lad working in garages, we had a bucket of diesel for soaking corroded together objects in...

    Good luck with your fettle!

  5. Alex74

    Alex74 United Kingdom Subscriber

    Offline
    Joined:
    Oct 13, 2019
    Messages:
    477
    Location:
    Faringdon, Oxon

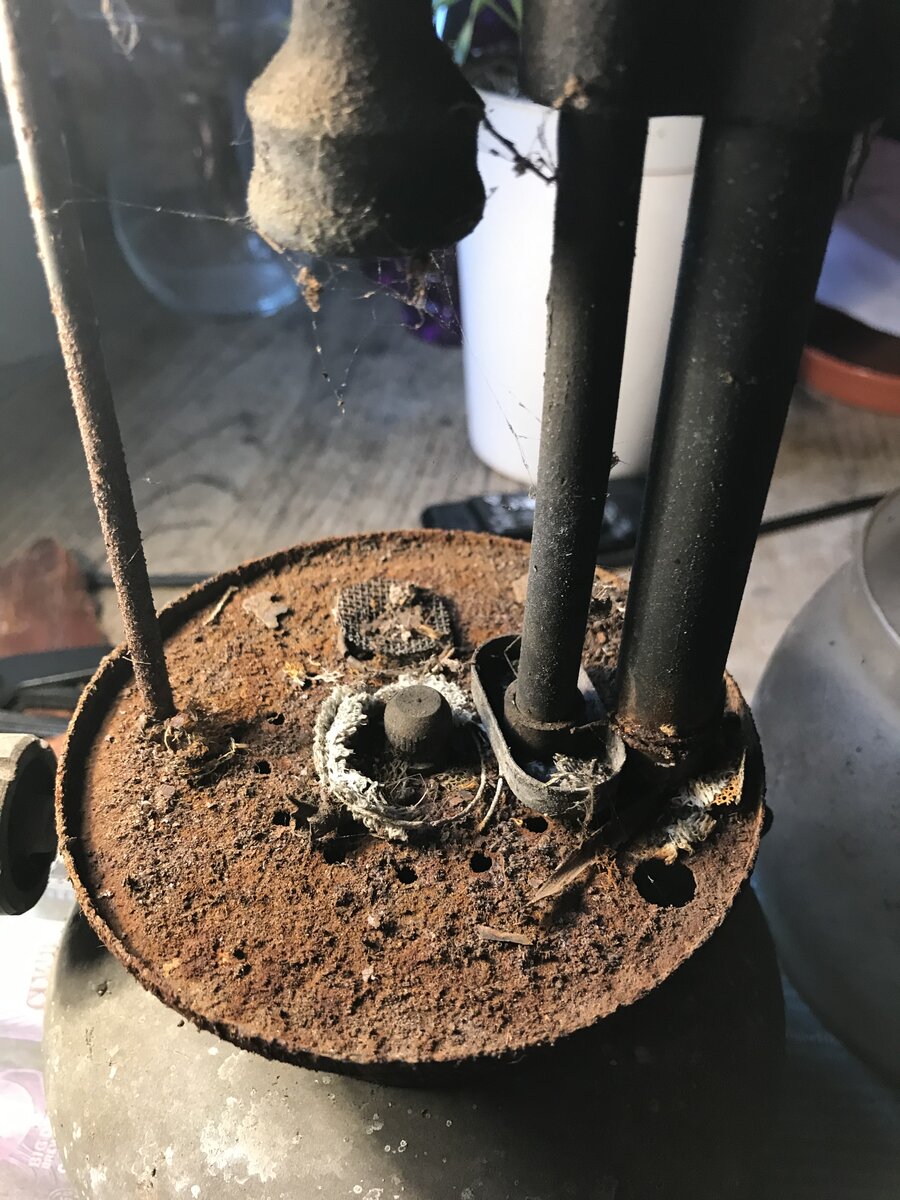

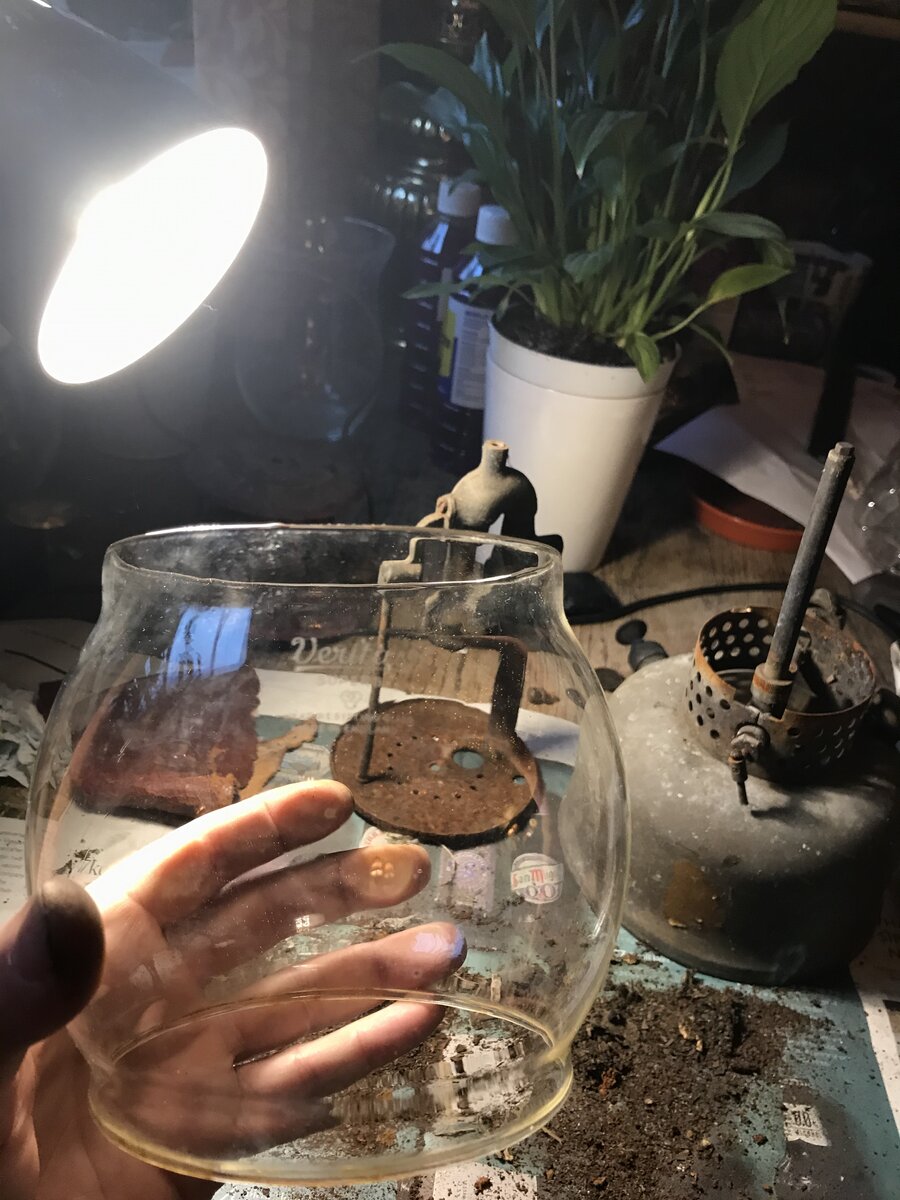

    Awww thanks guys. So progress already. I got it apart to find a pound of dust and rust, but guess what! It pressurises and old paraffin squirts out of the vapouriser! Maybe it’s not as bad as it looks. The steel (?) plate at the bottom of the cage is rusty but all solid. The lamp came with some residual manky fuel in it, so the bottom of the tank ( steel?) doesn’t leak. I’ve now drained it out and rinsed it with fresh kerosene. The glass cleaned up ok with hot soapy water.

    Can anyone tell me what the little ‘tube screw’ at the opposite side of the stop cock does? Is it just fir depressurising? It unscrews freely but doesn’t come off the valve....

    A46D8E25-7A48-41BB-81D7-5FAA015EF1A2.jpeg 51AA0F6C-F841-498D-8310-68148580299A.jpeg C56B5961-7A0B-4137-8C77-37E696E1CCBD.jpeg C0C2CEFB-FD3C-4C77-891D-D4F0EAA978C3.jpeg

  6. Darryl Durdin

    Darryl Durdin Australia Subscriber

    Offline
    Joined:
    Dec 11, 2018
    Messages:
    967
    Location:
    Whyalla. South Australia. Australia
    Hi there it is your pricker lever, it’s missing a tubular piece held on with a screw, if you find your lantern in the gallery you can see what it should look like,
    Looks to be a a cool fettle project,

  7. Mr cod

    Mr cod Subscriber

    Offline
    Joined:
    Jan 21, 2018
    Messages:
    237
    Location:
    Aylsham norfolk
    Hi ,it looks to be all there, a fair bit of work should clean it up and if your interested base camp have a service kit listed for this model
    Regards ian.

  8. bp4willi

    bp4willi Germany Subscriber

    Offline
    Joined:
    Jan 21, 2014
    Messages:
    735
    Location:
    Niers, Germany
    That will transform into beauty in your caring hands. Good luck.

  9. Jean J

    Jean J Subscriber

    Offline
    Joined:
    Jun 25, 2011
    Messages:
    2,063
    Location:
    N E Scotland
    Alex, I recently bought some lamps in much the same state but I’ll guarantee your fettle will result in a very desirable lamp whereas mine.........

  10. podbros

    podbros United Kingdom Subscriber

    Offline
    Joined:
    Dec 27, 2015
    Messages:
    1,748
    Location:
    Wirral
    ... will shine ! :thumbup:

    One lamp at a time...

  11. BigStevie

    BigStevie United Kingdom Subscriber

    Offline
    Joined:
    Dec 5, 2018
    Messages:
    1,928
    Location:
    Scottish Highlands
    Now it’s come apart it appears to be in solid condition. These types of fettles are so satisfying....

  12. David Shouksmith

    David Shouksmith United Kingdom Founder Member

    Offline
    Joined:
    Sep 6, 2010
    Messages:
    7,975
    Location:
    North-East England
    I'd be worried about the burner screen lying on the globe support plate. If it's already fallen out of its own accord it's probably not going to remain in place when you run the lantern. Maybe you could return it to shape and it might spring back into place and stay there. Otherwise I've no idea where you might get a replacement but you could possibly cut another one from some stainless mesh of the same gauge. Fingers crossed with it. [-o<

    One little tip, see that small screw holding the top of the support rod onto the burner? - don't try to remove it unless you absolutely have to. :oops:

    If you need any spare parts, I've four of these little buggers which are fit only for breaking...

  13. James K

    James K United Kingdom Subscriber

    Offline
    Joined:
    Nov 10, 2017
    Messages:
    406
    You can't beat a good fettle, esp one where a lamp is transformed back to life.

  14. Alex74

    Alex74 United Kingdom Subscriber

    Offline
    Joined:
    Oct 13, 2019
    Messages:
    477
    Location:
    Faringdon, Oxon
    Ok thanks guys,

    We’ll see what we can do with it.

    David- yes, the burner mesh screen had come loose and was lying on the base of the cage among the dirt. I’ll try and do what you suggest. I also found a metal ring next to it- presumably the retaining ring as its the same diameter?

    I’ll go and look up the ‘Superb’ in the gallery to learn a bit more about it and why it is has a reputation for being a temperamental bastard of a lamp!
    :rage::mrgreen:

  15. David Shouksmith

    David Shouksmith United Kingdom Founder Member

    Offline
    Joined:
    Sep 6, 2010
    Messages:
    7,975
    Location:
    North-East England
    Yes, I'd forgotten about the retaining ring - I must have been thinking about another lantern (Austramax, perhaps?).

    Well, the Veritas Superb had a reputation for being temperamental but now conventional wisdom seems to be they're the best thing since sliced bread - and even I've had one running successfully (the other five in my collection, not so much...).

  16. ColinG

    ColinG United Kingdom Subscriber

    Offline
    Joined:
    Oct 2, 2017
    Messages:
    3,349
    I came by one in much the same state but minus the globe unfortunately. The pricker lever is meant to have a small piece of what I think is cork tube. It slips over the brass tube and is swaged over at the end to hold it there. Its meant to stop the heat burning your fingers when you operate the pricker mechanism but you still have to be careful!

    I've used some stainless mesh from a kitchen strainer on the burner and so far it's held up ok.

    There's some stuff you can get on eBay called Rust Destructor that is pretty good. You have to leave the affected part in the solution for a few days but it does the job. It needs some mechanical action to help remove the rust but once it's finished it leaves a good clean steel surface behind ready for painting or plating - after you've decided what to do about the pitting. I've just used it to de-rust a badly corroded Vapalux 300 and the transformation is impressive!

    As for the thorny issue of how good or bad Veritas lanterns are, you'll have to decide for yourself but they are, in essence, very similar to Coleman lanterns in the way they operate. All the Superbs in my collection, even the grotty one, start themselves after about 30 seconds pre-heat by which I mean the fuel left in the generator begins vaporising and all you have to do is open the control valve to keep it going. I'm not sure where the poor reputation came from but it's probably something to do with the Dutch army versions that were modified to run on naptha/CF etc.

    Anyhow, good luck with the fettle and if you need any help there's a possie of us Veritas nuts ready to assist. Can't wait for the money shot.

  17. David Shouksmith

    David Shouksmith United Kingdom Founder Member

    Offline
    Joined:
    Sep 6, 2010
    Messages:
    7,975
    Location:
    North-East England
    Especially the 239E 'Ranger' which is a re-badged Veritas Superb. I don't know if Coleman varied the specification of any of the parts in any way but they were clearly prepared to guarantee the the lantern's performance

    One of my Superbs runs quite nicely even with a 1" diameter hole in the globe...

  18. ColinG

    ColinG United Kingdom Subscriber

    Offline
    Joined:
    Oct 2, 2017
    Messages:
    3,349
    Blimey, how did it get a 1 inch hole in the globe? It's surprising it survived!

    As far as I know the Ranger is identical, at least AussiePete's is.

  19. David Shouksmith

    David Shouksmith United Kingdom Founder Member

    Offline
    Joined:
    Sep 6, 2010
    Messages:
    7,975
    Location:
    North-East England
    No idea - it's in the widest part of the globe so I suppose it bumped up against something at some time. The glass is also very thin there. I'm sure I posted a pic of it in one of the various Veritas Superb threads last year around Newark time.

    I use it routinely to prevent damage to the perfect globe which came with the lantern...

  20. Johnny19

    Johnny19 United Kingdom Subscriber

    Offline
    Joined:
    Jul 5, 2020
    Messages:
    365
    Location:
    Liverpool
    Looking forward to seeing how this progresses Alex, It's going to be a fettle and a half, but will be worth it methinks!

  21. AussiePete

    AussiePete Australia Subscriber

    Offline
    Joined:
    Nov 21, 2015
    Messages:
    3,109
    Location:
    Toowoomba Australia
    Yes, as @ColinG has said, the Coleman 239E “Ranger” is a rebadged Veritas Superb.
    Here is are some pictures of mine. Please note I’ve lit my Ranger (Superb) using a stand in straight sided globe to preserve the original bulged globe.

    8FC203FA-004A-483A-8A8D-2B21BEBBC694.jpeg 3EC9A9E4-793A-4B09-A3E5-062BA3DC769C.jpeg 7E87E622-AA74-4099-B408-B91F1D06CDA3.jpeg

    Incidentally,
    I have 5 Veritas lanterns, 2 being Superbs, and all start, preheat, very well and run brilliantly. Considering my experience with Veritas, I find they’re very good lanterns and light exceptional easily.

    Enjoy your fettle @Alex74.

    Cheers
    Pete

    Last edited: Mar 22, 2021
  22. David Shouksmith

    David Shouksmith United Kingdom Founder Member

    Offline
    Joined:
    Sep 6, 2010
    Messages:
    7,975
    Location:
    North-East England
    Well, acksherley, that was me - but no matter - see post #17 above... :)

  23. AussiePete

    AussiePete Australia Subscriber

    Offline
    Joined:
    Nov 21, 2015
    Messages:
    3,109
    Location:
    Toowoomba Australia
    Hey David, it was you, sorry mate ....... Just goes to show, the older we get the more we explore the alternate universe ......
    Cheers
    Pete
    @David Shouksmith

  24. Alex74

    Alex74 United Kingdom Subscriber

    Offline
    Joined:
    Oct 13, 2019
    Messages:
    477
    Location:
    Faringdon, Oxon
    Awww. Thanks for all the comments guys. And great pictures of your Ranger Pete. They will help me and others in future.

    I haven’t had the time to progress on the lamp yet as I’m doing DIY in the house as well at the weekends. Hopefully I’ll be able to make progress over the Easter holiday. Looking forward to retirement to have more time for hobbies, but it’s still about 24 years away! :shock::?:doh:

  25. Alex74

    Alex74 United Kingdom Subscriber

    Offline
    Joined:
    Oct 13, 2019
    Messages:
    477
    Location:
    Faringdon, Oxon
    Still doing DIY a month’s on! No progress to report on lamp fettling and am feeling vaguely guilty!... a serious case of ‘veritas neglect PTSD’! I hope you’re all well by the way!

  26. Fireexit1

    Fireexit1 United Kingdom Subscriber

    Offline
    Joined:
    Jun 13, 2020
    Messages:
    1,119
    Location:
    Brighton UK
    Sorry @Alex74 - we only take confessions on a Sunday :lol: - I am sure you will say a couple of "hail veritas" and be back on track soon :thumbup:
    Yours,
    Rev. Vapalux

  27. Alex74

    Alex74 United Kingdom Subscriber

    Offline
    Joined:
    Oct 13, 2019
    Messages:
    477
    Location:
    Faringdon, Oxon
    :mrgreen::mrgreen::lol::lol::lol::):D I will certainly do that. I’ll light a couple of lamps too while reciting the hail Veritas...maybe with a beer or two!
