Vitreous (porcelain US) enamelling a hood

Discussion in 'Fettling Forum' started by presscall, Jul 8, 2020.

  1. presscall

    presscall United Kingdom Subscriber

    Offline
    Joined:
    Jan 3, 2011
    Messages:
    1,358
    Location:
    Lancashire, UK

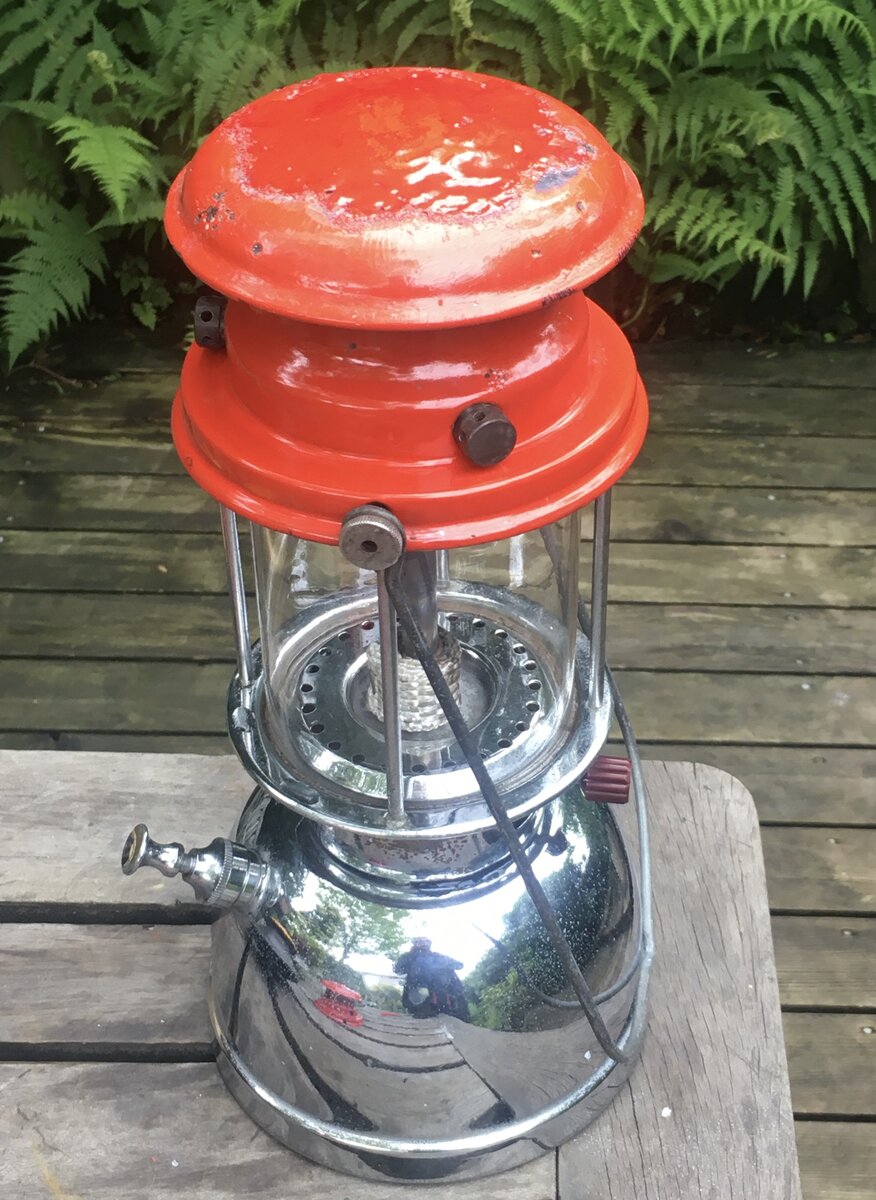

    Patching really, of a red Bialaddin hood.

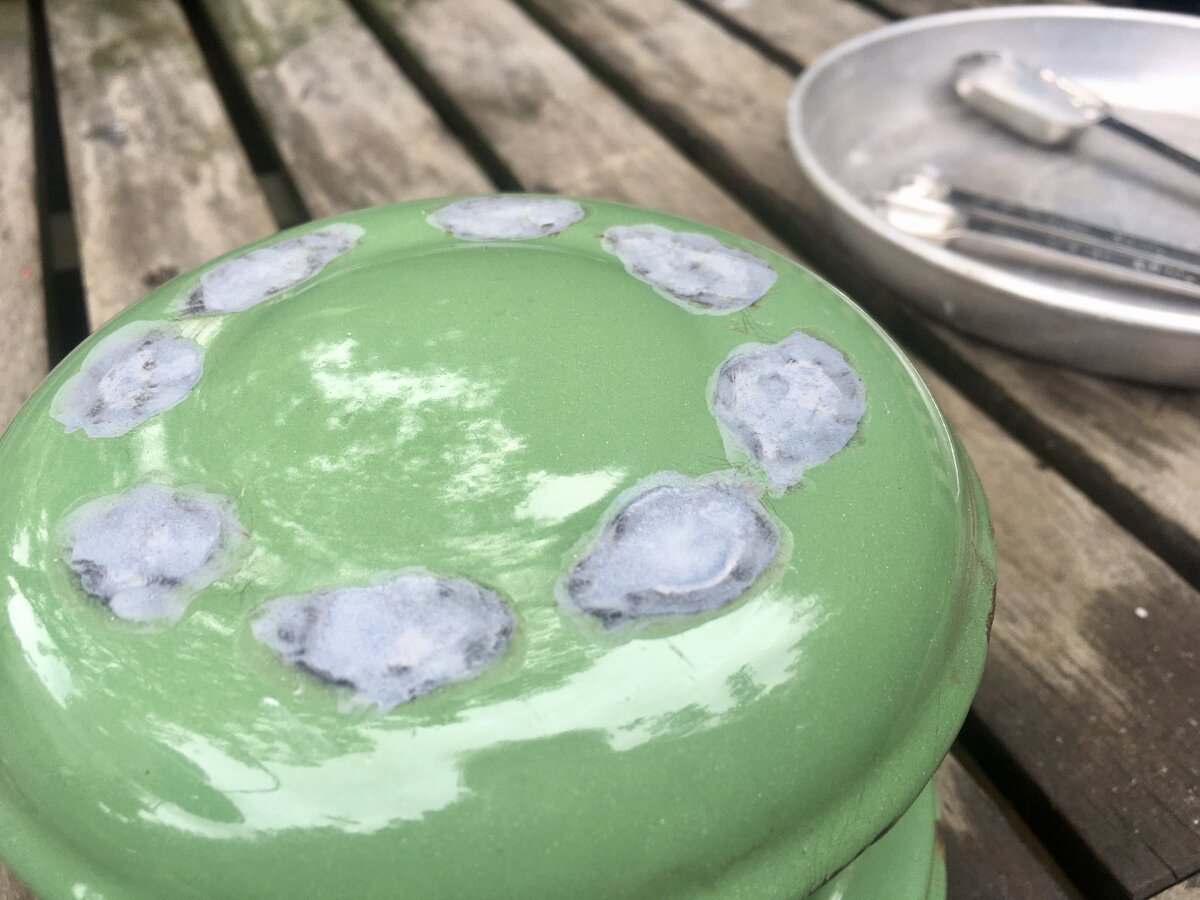

    This specimen, with the characteristic loss of enamel where spot-welds in the hood fabrication conduct heat resulting in hot-spots and enamel micro-cracking and loss. I’ve used a Dremel sanding drum to get rid of loose rust in the patches.





    I cut a sliver of steel to fill that void. No need to silbraze it in position, it will be covered and be held in place by the enamel.



    I’ve never done any enamelling before and with no justification to buy a kiln (£££’s) got to thinking that my MAPP blowtorch melts silver solder at a higher melting point than enamel (powdered coloured glass primarily) so why not try that?



    On reading up on enamelling techniques I was pleased to discover that ‘torch firing’ is an established method. A possible snag was that it’s used primarily in jewellery enamelling, small pieces and not hood-sized.

    I found that as well as the blowtorch I already owned a chemistry lab tripod, something I couple up with a vintage naptha-fuelled Barthel bunsen burner occasionally to brew coffee.



    Other essential was eye protection, since I visualised enamel perhaps cracking and getting airborne (it didn’t, but as well to take precautions).



    Enamel supplies in the UK took me to WG Ball and I shopped for ‘groundcoat’ used to provide a base coat on steel ...



    ... and a ‘Rosso Red’ enamel. There are a number of shades of red and orange vitreous enamel powders available from that supplier so it was a bit of a guess. The website colour chart of the fused enamel is the guide, the colour of the enamel powder is much paler than the finished result.



    I shopped too for a green enamel to patch yet another Bialaddin hood.



    I mixed the groundcoat powder with water to make a creamy paste ...



    ... and coated the patches to be enamelled. I then fired the groundcoat.



    The enamelling set-up. Torch flame is pointed upwards, from below. Apparently (online enamelling tutorials say) if the torch flame is played directly on the enamel it oxidises and discolours the finished result.



    No need to let the groundcoat cool completely and I applied the red enamel as a powder, using my little measuring spoon to deposit a layer on each patch. Another reason to heat the work from below, since the torch flame would blow away the enamel powder before it had had a chance to melt.

    Workpiece still hot, to lighten in colour on cooling.



    Finished result. Far from perfect, but a reasonable first attempt. Certainly encouraging to patch the green hood next. ‘Rosso Red’ turned out to be a decent match.




    The usual darkening of the enamel on lighting up the Bialaddin.

    A4463758-CF0B-43DE-93E2-4599CA21BD73.jpeg F79B00CA-D5F8-417B-8E2F-126C0B0DAE2E.jpeg


    John

    Last edited: Jul 8, 2020
