Aladdin 1A – Fettle

Discussion in 'Fettling Forum' started by AussiePete, May 22, 2020.

  1. AussiePete

    AussiePete Australia Subscriber

    Offline
    Joined:
    Nov 21, 2015
    Messages:
    2,574
    Location:
    Toowoomba Australia
    @Damien

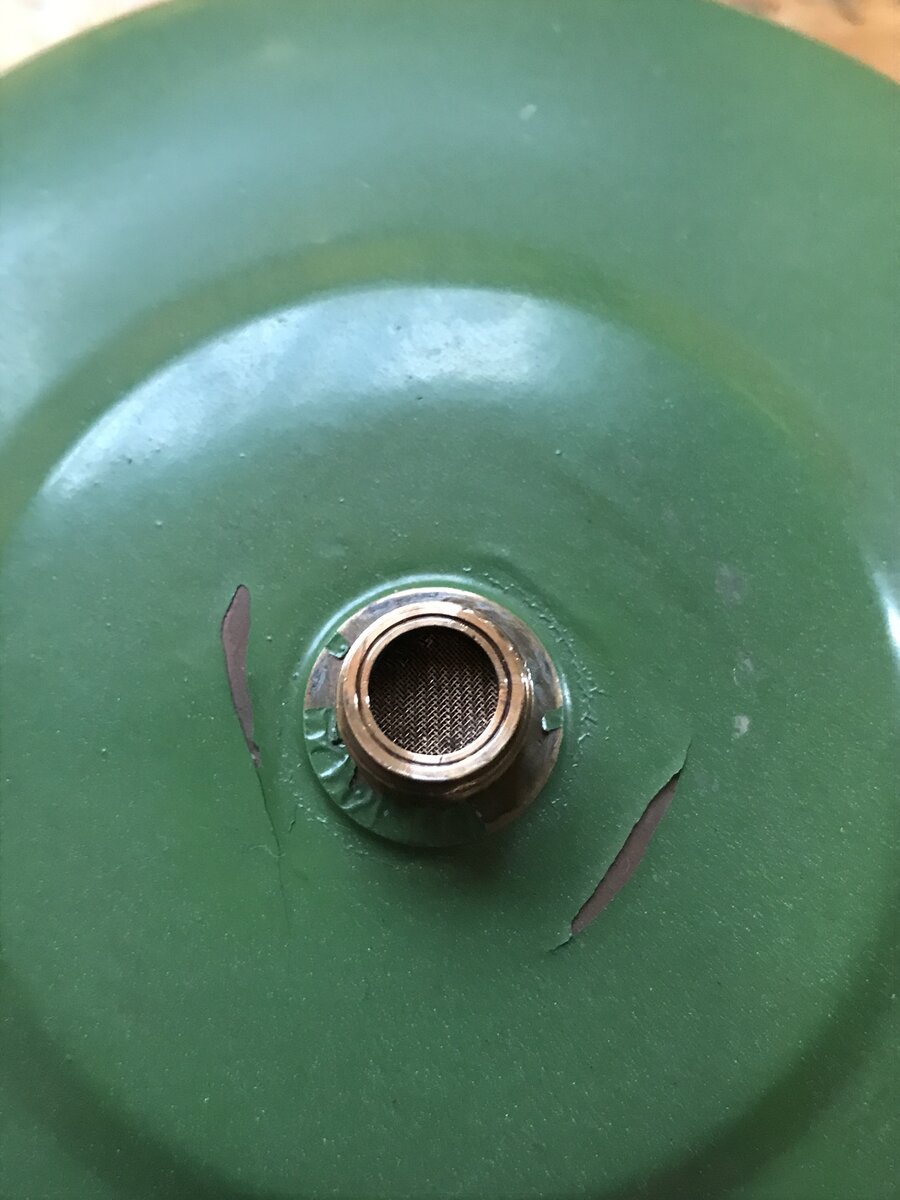

    Did you clean the filter that sits in the tank below the valve manifold?
    Here is a picture of it.

    The filter is an interference fit and can be coached out with a pin or needle.
    If this filter is blocked, or almost blocked, you may get a dribble from the jet but not enough to support a flame.
    Cheers
    Pete

  2. ROBBO55

    ROBBO55 Subscriber

    Offline
    Joined:
    Oct 21, 2014
    Messages:
    1,819
    Location:
    Somersby, New South Wales, Australia
    Damien, Not in that order I hope.

    You fill the preheater with Methylated spirits and light.
    Wait until the vapouriser is hot. Metho should be almost gone.
    then pump
    You should see vapour coming from the porcelain nozzle.
    Light the vapour

  3. Damien

    Damien Australia Subscriber

    Offline
    Joined:
    Apr 8, 2020
    Messages:
    136
    Location:
    NSW
    Thanks Pete and Robbo.... again.... in your debt.

  4. Damien

    Damien Australia Subscriber

    Offline
    Joined:
    Apr 8, 2020
    Messages:
    136
    Location:
    NSW
    Pete..... truly beautiful fettle! The info that flowed after your original post was awe inspiring. The boof head above (yours truly) who attempted to wreck this thread with his ignorant whinging is truly sorry. Impatience and frustration got the better of me.
    Bloody nice to see these variations. Humbled by your passion and knowledge.

  5. AussiePete

    AussiePete Australia Subscriber

    Offline
    Joined:
    Nov 21, 2015
    Messages:
    2,574
    Location:
    Toowoomba Australia
    @Damien
    Don't be hard on yourself. I'm so happy to be able to help in anyway I can and to share what knowledge I have. There is so much knowledge on this forum, mine is but a small contribution, the only sin is not asking questions. This is what the forum is all about.
    Keep us informed of your progress, and of course, the money shot .......... :D/
    Cheers
    Pete

  6. Damien

    Damien Australia Subscriber

    Offline
    Joined:
    Apr 8, 2020
    Messages:
    136
    Location:
    NSW
    Cheers Pete.
    Just got some low odour kero and more metho... I find crud keeps coming up the vapouriser and blocking the nipple. I'll just keep trying!

  7. kero-scene Australia

    Offline
    Joined:
    Jan 23, 2013
    Messages:
    220
    Location:
    Australia
    Hi Damien,

    Have you been using low odour kerosene in all your attempt to light it?

    My impression is that low odour kerosene has some of the more volatile components removed and in some lanterns may thwart your efforts to pre-heat.

    So if you’ve checked everything else with no luck then perhaps try ‘normal‘ kerosene.

  8. Damien

    Damien Australia Subscriber

    Offline
    Joined:
    Apr 8, 2020
    Messages:
    136
    Location:
    NSW
    Thanks mate.
    I've been using Diggers "normal " kero for all my attempts... it's about half the price of the low odour stuff. I just bought some low odour because yesterday was pay day and I'm a bit tired of the kero aftershave smell!
    I've finally got orange, smokey flame coming out of the porcelain spreader!!! Maybe more cleaning is needed?

  9. AussiePete

    AussiePete Australia Subscriber

    Offline
    Joined:
    Nov 21, 2015
    Messages:
    2,574
    Location:
    Toowoomba Australia
    @Damien
    Orange smoky flame, provided that you have enough pressure and she’s been adequately preheated, is an indication that she’s running too rich. Too much fuel to air ratio.
    The 2 most common causes is the jet is worn, giving to much fuel, and or there is an obstruction in the air tube to the burner, causing not enough air for the fuel being delivered.
    Cheers
    Pete

  10. Damien

    Damien Australia Subscriber

    Offline
    Joined:
    Apr 8, 2020
    Messages:
    136
    Location:
    NSW
    I dare say the nipple is worn... it is certainly a bigger diameter than on the Veritas, if that's a useful comparison.
    I've had no luck, as yet, with 2 Aussie supply places online. One's TW and the other in Braidwood.
    Is there a reliable Aussie supplier of pressure lamp parts?
    I'm going to need another nipple and I'm still searching for leather cups for 1A and the Veritas.

  11. Tony Press

    Tony Press Australia Subscriber

    Online
    Joined:
    Aug 28, 2012
    Messages:
    6,059
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    Damien. What parts do you want. I have plenty of bits and pieces.

    Tony
