Fixing a Bialaddin

Discussion in 'Fettling Forum' started by Balach Mor, Feb 23, 2023.

  1. Balach Mor United Kingdom

    Offline
    Joined:
    Feb 23, 2023
    Messages:
    32
    Location:
    Isle of Skye

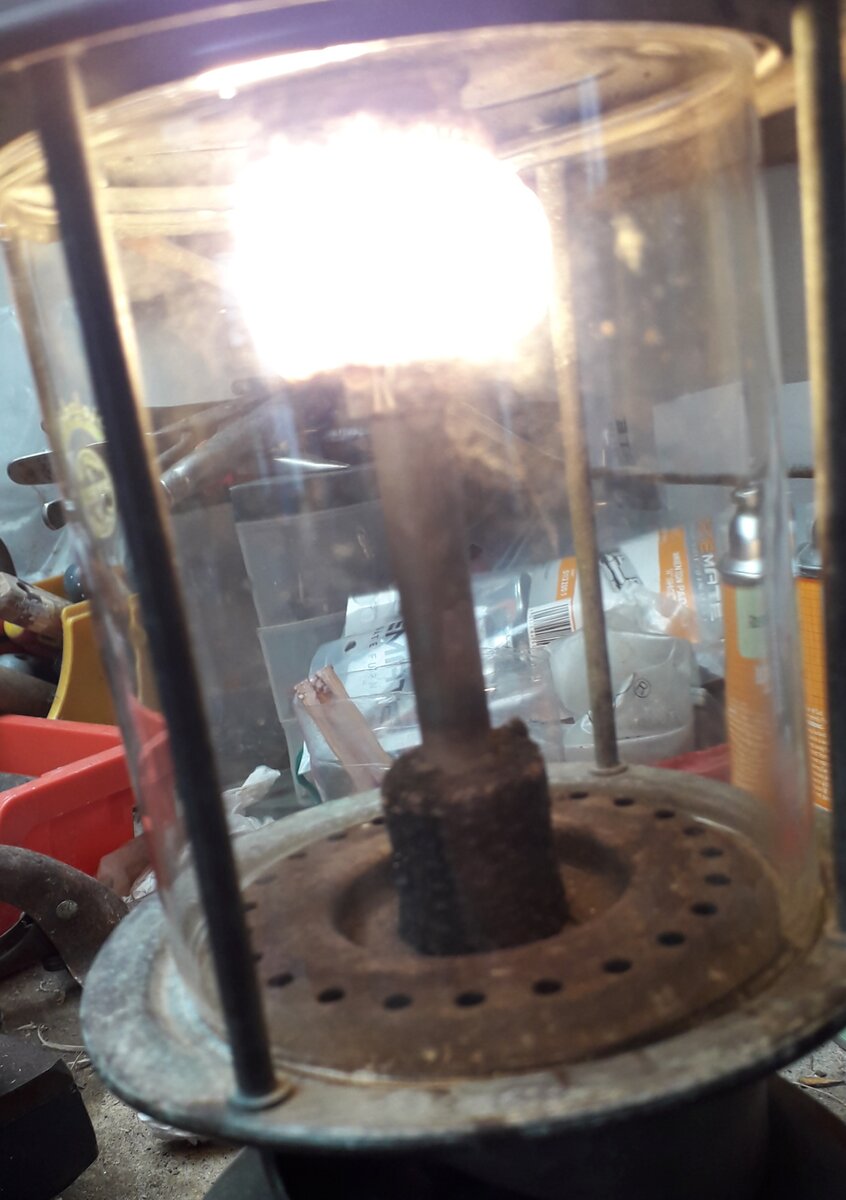

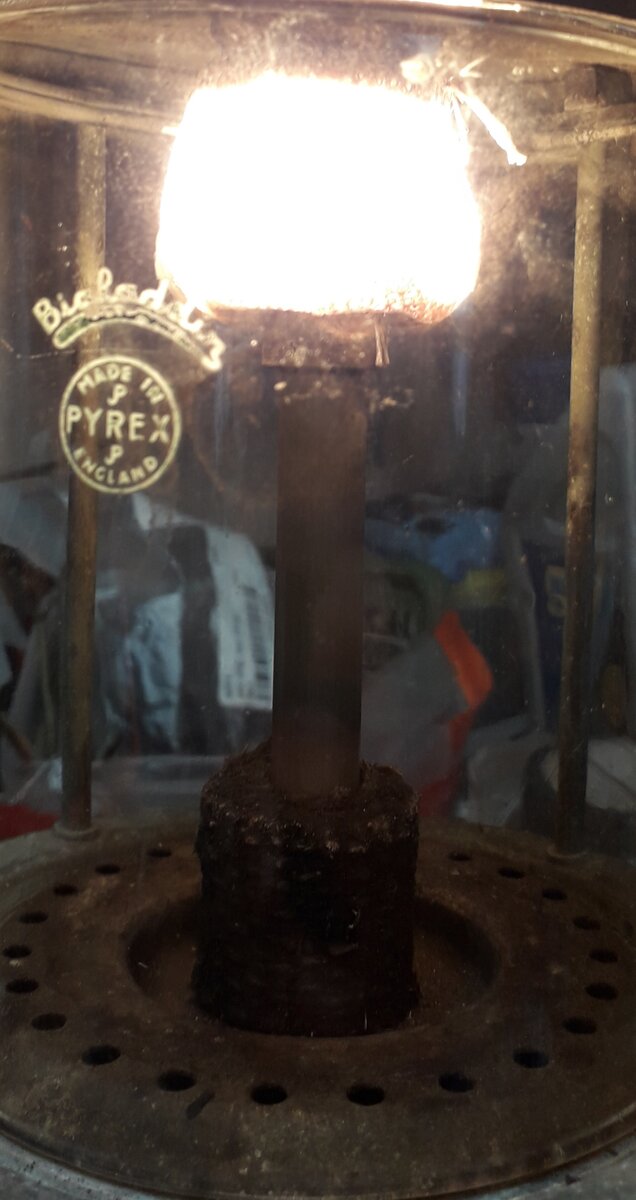

    Well Gentlemen, I reckon this is it, I had to replace the Vapouriser as even with attempting to revive it still didn't work correctly, The mantle cleaned up nicely after the proper operation, again thank you all, Ceud mile Taing!.


    Attached Files:

  2. Fireexit1 United Kingdom

    Offline
    Joined:
    Jun 13, 2020
    Messages:
    3,493
    Location:
    Brighton UK
    Well it looks very fine now - vapourisers can be a bit of a "lucky dip" - I have had more good than bad ones :thumbup:

  3. ROBBO55

    ROBBO55 Subscriber

    Offline
    Joined:
    Oct 21, 2014
    Messages:
    4,174
    Location:
    Somersby, New South Wales, Australia
    Congratulations :thumbup:

  4. podbros

    podbros United Kingdom Subscriber

    Offline
    Joined:
    Dec 27, 2015
    Messages:
    3,796
    Location:
    .. next to the Chester & Birkenhead Rlwy
    Ah that looks better.. well done! :thumbup:

  5. Steve j

    Steve j United Kingdom Subscriber

    Offline
    Joined:
    Sep 9, 2023
    Messages:
    8
    Location:
    Northumberland
    Good morning steerpike451.i have just got a bialaddin 305 lamp do you know how the knob for the control valve comes off does it pull off or unscrew I have tried both and don't want to damage it

  6. steerpike451

    steerpike451 United Kingdom Subscriber

    Offline
    Joined:
    Jun 29, 2016
    Messages:
    179
    Location:
    Norfolk, UK.
    Sorry for late reply, have only just seen your post!
    If it's the original control it will screw on. They can be a pain to get loose; I use penetrating oil, let it soak in, then grip the shaft in a vice using scrap aluminium sheet to protect it and turn the knob with pump pliers using some scrap leather to protect it from marking. It's a normal right hand thread so loosens anticlockwise. Patience, plenty of oil and a certain amount of harsh language seem to help!
    The later push fit style are easy to spot by the retaining screw in the centre of the knob, and equally easy to remove.

  7. Steve j

    Steve j United Kingdom Subscriber

    Offline
    Joined:
    Sep 9, 2023
    Messages:
    8
    Location:
    Northumberland
    Thank you for the information I will give it a try. I have done plenty of the tilley lamps but this is the first bialaddin lamp I have a new seal kit on the way thank you once again for the information

  8. Steve j

    Steve j United Kingdom Subscriber

    Offline
    Joined:
    Sep 9, 2023
    Messages:
    8
    Location:
    Northumberland
    Hi thanks tryed as you suggested and success all OK and un damaged thank you
