Fount Dent Removal - Ice

Discussion in 'Fettling Forum' started by AussiePete, Sep 2, 2019.

  1. george

    george United States Subscriber

    Offline
    Joined:
    Nov 8, 2011
    Messages:
    1,137
    Location:
    USA
    Yep, that bung in the top where the burner valve fits is apparently not tight!:rage:

    Back to the old drawing board...:mrgreen:

  2. Peter Lucchini

    Offline
    Joined:
    Sep 23, 2017
    Messages:
    12
    Location:
    White Rock New Mexico
    No pun but Cool Pete!!
    Always a method to the madness isn't there?:clap::thumbup:

  3. Lek

    Lek Thailand Subscriber

    Offline
    Joined:
    Apr 11, 2011
    Messages:
    9
    Location:
    ฺBangkok Thailand
    Well done!!!
    Thanks for sharing.

  4. toad of the cape

    toad of the cape Subscriber

    Offline
    Joined:
    Feb 21, 2017
    Messages:
    87
    @AussiePete Just found this very handy solution and have three candidate's for this operation,cheers fellow stovie.
    warm regards Alex

  5. AussiePete

    AussiePete Australia Subscriber

    Offline
    Joined:
    Nov 21, 2015
    Messages:
    1,486
    Location:
    Toowoomba Australia
  6. Matti Kucer

    Matti Kucer Sweden Subscriber

    Offline
    Joined:
    Mar 4, 2018
    Messages:
    112
    Location:
    Sweden
    Hi friends!

    I recently aqquired this Optimus 200P with a big dent at the top of it.
    The plan is to use the freezing metod to remove the big top dent and maybe reduce the one on the side of the tank.

    But how to seal it so that preassure of the freezing water can perform its magic? Am i supposed to let the carburator stay?

    Regards Matti Kucer


  7. Matti Kucer

    Matti Kucer Sweden Subscriber

    Offline
    Joined:
    Mar 4, 2018
    Messages:
    112
    Location:
    Sweden
  8. AussiePete

    AussiePete Australia Subscriber

    Offline
    Joined:
    Nov 21, 2015
    Messages:
    1,486
    Location:
    Toowoomba Australia
    @Matti Kucer
    The crease type dent maybe hard to remove because the crease in itself is quite structurally strong. However it’s certainly worth a try.
    My preference is to remove the valve assembly and use a fitting with the same thread as a plug. All openings into the fount must be closed, water tight. I do leave the pump with it’s NRV installed because in my method it’s frozen first in the bottom half.
    Good luck with the dent removal.
    Cheers
    Pete

  9. Matti Kucer

    Matti Kucer Sweden Subscriber

    Offline
    Joined:
    Mar 4, 2018
    Messages:
    112
    Location:
    Sweden
    The tank is now in the freezer -18C for the first part of the operation. I cut of some 5cm from the valve assembly and sealed it by soldering the end. I believe that the cut off part can be restored again later.

    I will continue with part two tomorrow evening.

    Regards Matti Kucer


  10. Matti Kucer

    Matti Kucer Sweden Subscriber

    Offline
    Joined:
    Mar 4, 2018
    Messages:
    112
    Location:
    Sweden

    Soon time to fill up with water.

  11. Matti Kucer

    Matti Kucer Sweden Subscriber

    Offline
    Joined:
    Mar 4, 2018
    Messages:
    112
    Location:
    Sweden
    IMG_20191120_231755.jpg IMG_20191121_202953.jpg

    Here, the shortened and sealed/soldered lower part of the valve assembly. Now in the freezer for the initial hour. Then 30-45 minutes additional freezing for the magic to occur.

  12. Adrian Romania

    Offline
    Joined:
    Nov 7, 2019
    Messages:
    15
    Location:
    Bucharest
    Having access to a freezer with a clear window would make the method even safer :)

  13. WimVe

    WimVe Subscriber

    Offline
    Joined:
    Aug 3, 2011
    Messages:
    1,575
    ok, ok, that was yesterday !
    How does it looks now ?

  14. george

    george United States Subscriber

    Offline
    Joined:
    Nov 8, 2011
    Messages:
    1,137
    Location:
    USA
    Can't wait to see the "end product"!!:shock::thumbup:
    :D

  15. AussiePete

    AussiePete Australia Subscriber

    Offline
    Joined:
    Nov 21, 2015
    Messages:
    1,486
    Location:
    Toowoomba Australia
    Any news?

  16. george

    george United States Subscriber

    Offline
    Joined:
    Nov 8, 2011
    Messages:
    1,137
    Location:
    USA
    :p:thumbup::mrgreen::-# Ready yet???

  17. Matti Kucer

    Matti Kucer Sweden Subscriber

    Offline
    Joined:
    Mar 4, 2018
    Messages:
    112
    Location:
    Sweden
    Hi all!

    Due to my late start friday evening I had to abort long after midnight, it was time to go to bed.
    I then restarted step 1 during saturday.
    With the base frozen I filled it today, waited 1 hour and 10 minutes.
    CAUTION! In this case the time was perfect, the dent in the uppger part was gone. However, the power of the expanding water is extreme.

    Here it is in a bucket filled with hot water.


    Last edited: Nov 25, 2019
  18. WimVe

    WimVe Subscriber

    Offline
    Joined:
    Aug 3, 2011
    Messages:
    1,575
    ok, ok, she's bath now. But the dent, what about the dent ?

  19. Matti Kucer

    Matti Kucer Sweden Subscriber

    Offline
    Joined:
    Mar 4, 2018
    Messages:
    112
    Location:
    Sweden
    I would say its gone.

    The lowest picture is the "after" picture.

    Collage 2019-11-25 20_15_08.jpg

  20. Matti Kucer

    Matti Kucer Sweden Subscriber

    Offline
    Joined:
    Mar 4, 2018
    Messages:
    112
    Location:
    Sweden
  21. WimVe

    WimVe Subscriber

    Offline
    Joined:
    Aug 3, 2011
    Messages:
    1,575
    uh, do we look at the same sharp long dent ?

  22. Matti Kucer

    Matti Kucer Sweden Subscriber

    Offline
    Joined:
    Mar 4, 2018
    Messages:
    112
    Location:
    Sweden
    Well, Yes. That sharp type of dent wont go this way. Only dents in the upper part.

    I guess this lantern was dropped at some point.

  23. AussiePete

    AussiePete Australia Subscriber

    Offline
    Joined:
    Nov 21, 2015
    Messages:
    1,486
    Location:
    Toowoomba Australia
    @Matti Kucer Well done.
    As you know, I have used this method of dent removal quite a bit, mostly for when the top of the fount has been pushed in. I have have very good success. Now yours with a upper side dent removal success adds to the usefulness of this method.
    Cheers
    Pete

  24. Matti Kucer

    Matti Kucer Sweden Subscriber

    Offline
    Joined:
    Mar 4, 2018
    Messages:
    112
    Location:
    Sweden

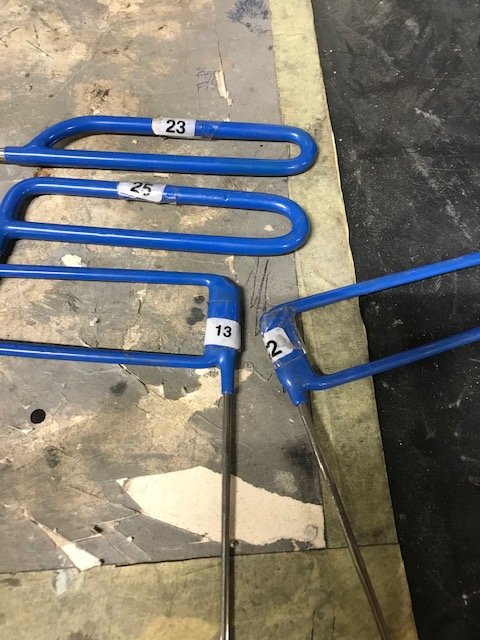

    I have borrowed some sticks for automotive dent repairs. Will try and see if I can reach the remaining dents.

  25. Matti Kucer

    Matti Kucer Sweden Subscriber

    Offline
    Joined:
    Mar 4, 2018
    Messages:
    112
    Location:
    Sweden
    I needed something hard that had a good tip to bend with, so i found a garden tool wallhanger that was useful. Managed to reduce the sharp dent. Its still there though.
