1. Desolate_Place Australia

    Offline
    Joined:
    May 21, 2026
    Messages:
    17
    Location:
    Adelaide, South Australia
    How do I get the valve assembly off, no vice or blowtorch yet. And how do I also remove the cleaning lever, it seems to keep spinning forever but not coming off helpppp 17801163552517591417811903860593.jpg

  2. Pancho

    Pancho Subscriber

    Offline
    Joined:
    Nov 26, 2019
    Messages:
    512
    Location:
    México
    Do you have wood fence? Find a gap between two, insert the valve and turn the fount.
    For the lever get a set of pliers and apply heat with a torch to the location where packing material is located then pull. This is how I do

  3. Desolate_Place Australia

    Offline
    Joined:
    May 21, 2026
    Messages:
    17
    Location:
    Adelaide, South Australia
    I don't have a wood fence unfortunately, I'm thinking of buying a vice just for this. It seems like it requires a extreme amount of torque to remove it, I've been told it's cemented in place.

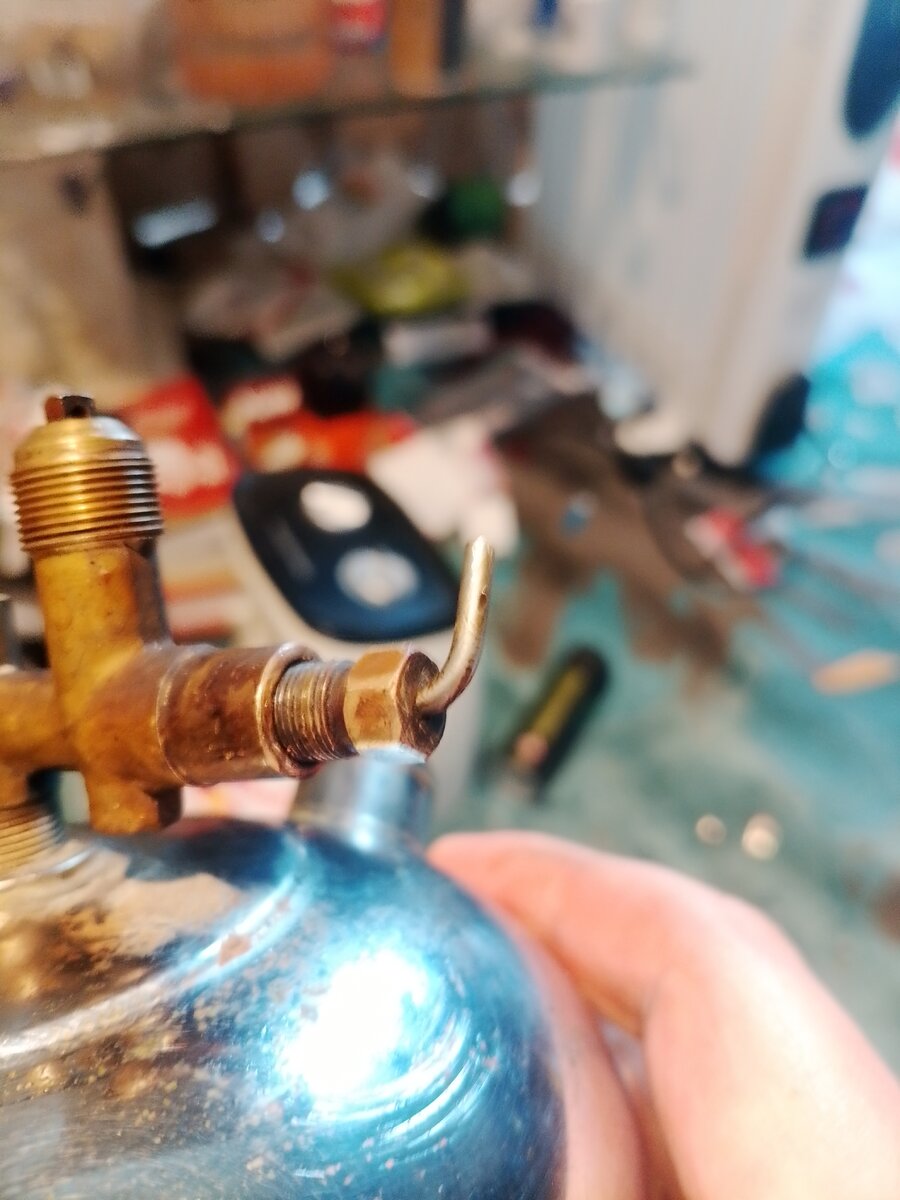

    I plan on getting a blow torch in 2 days for the removal. So there's a packing tube where the lever thing is? How do I go about removing it, I can't even see it 17801210932322655078203955948714.jpg

  4. Nils Stephenson

    Nils Stephenson Founder Member

    Offline
    Joined:
    Sep 9, 2010
    Messages:
    3,384
    Location:
    Copenhagen, Denmark
    For the lever, if it doesn't leak, just leave it in place. Unless there is a problem with it, it is not worth the effort to get out.

  5. ROBBO55

    ROBBO55 Subscriber

    Offline
    Joined:
    Oct 21, 2014
    Messages:
    4,355
    Location:
    Somersby, New South Wales, Australia
    As Nils said, If it doesn't leak, just leave it in place. Unless there is a problem with it, it is not worth the effort to get out.
    It takes a lot of force to remove and you run a good chance of damaging it.

    A vice is the easiest way to remove the valve, otherwise work out a way to clamp the valve to the bench.

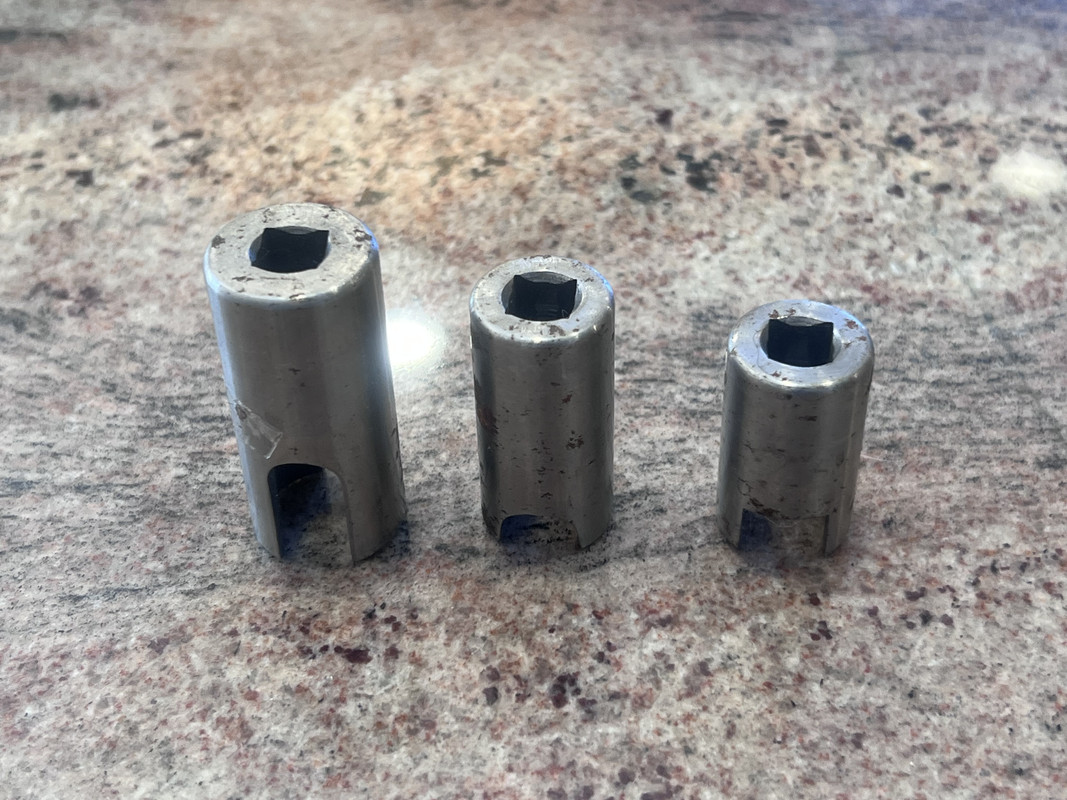

    Or you can modify a socket like this but you'll need a second set of hands to hold the tank.
    Classic coleman tools fuel valve removal tool - Page 1 - The Coleman Collectors Forum
