Kayen AP2 Handle pattern & advice on shade.

Discussion in 'Fettling Forum' started by MozzoSA, Oct 6, 2019.

  1. Anthony

    Anthony Australia Subscriber

    Offline
    Joined:
    May 7, 2013
    Messages:
    777
    Location:
    Melbourne, Australia
    That is a nice tight fit too.
    I should have mentioned that the wire in my picture above is about 1.3 mm.

  2. MozzoSA

    MozzoSA Australia Subscriber

    Offline
    Joined:
    Oct 6, 2019
    Messages:
    45
    Location:
    South Australia
    Ah thanks @Anthony . I might have another go if i can find some 1.3 galv at a later date. 2mm is quite difficult to work with.

  3. AussiePete

    AussiePete Australia Subscriber

    Offline
    Joined:
    Nov 21, 2015
    Messages:
    1,486
    Location:
    Toowoomba Australia
    You have made a very good job of it and explained it very well.
    Well done.
    Cheers
    Pete

  4. MozzoSA

    MozzoSA Australia Subscriber

    Offline
    Joined:
    Oct 6, 2019
    Messages:
    45
    Location:
    South Australia
    Update on making the bowl wire from yesterdays experiments. @Anthony pointed out the original wire was 1.3mm gauge. Best we could find was 1.25mm galv wire from Bunnings.

    This worked out quite well but I needed to make a better wire twist Jig to hold the ends in the drill better.

  5. MozzoSA

    MozzoSA Australia Subscriber

    Offline
    Joined:
    Oct 6, 2019
    Messages:
    45
    Location:
    South Australia
    IMG_20191019_101658.jpg The wire holder Jig. When pressed into the drill chick it prevents the ends from slipping out.

  6. MozzoSA

    MozzoSA Australia Subscriber

    Offline
    Joined:
    Oct 6, 2019
    Messages:
    45
    Location:
    South Australia
    IMG_20191019_101728.jpg Slotted tube with an internal pin

  7. MozzoSA

    MozzoSA Australia Subscriber

    Offline
    Joined:
    Oct 6, 2019
    Messages:
    45
    Location:
    South Australia

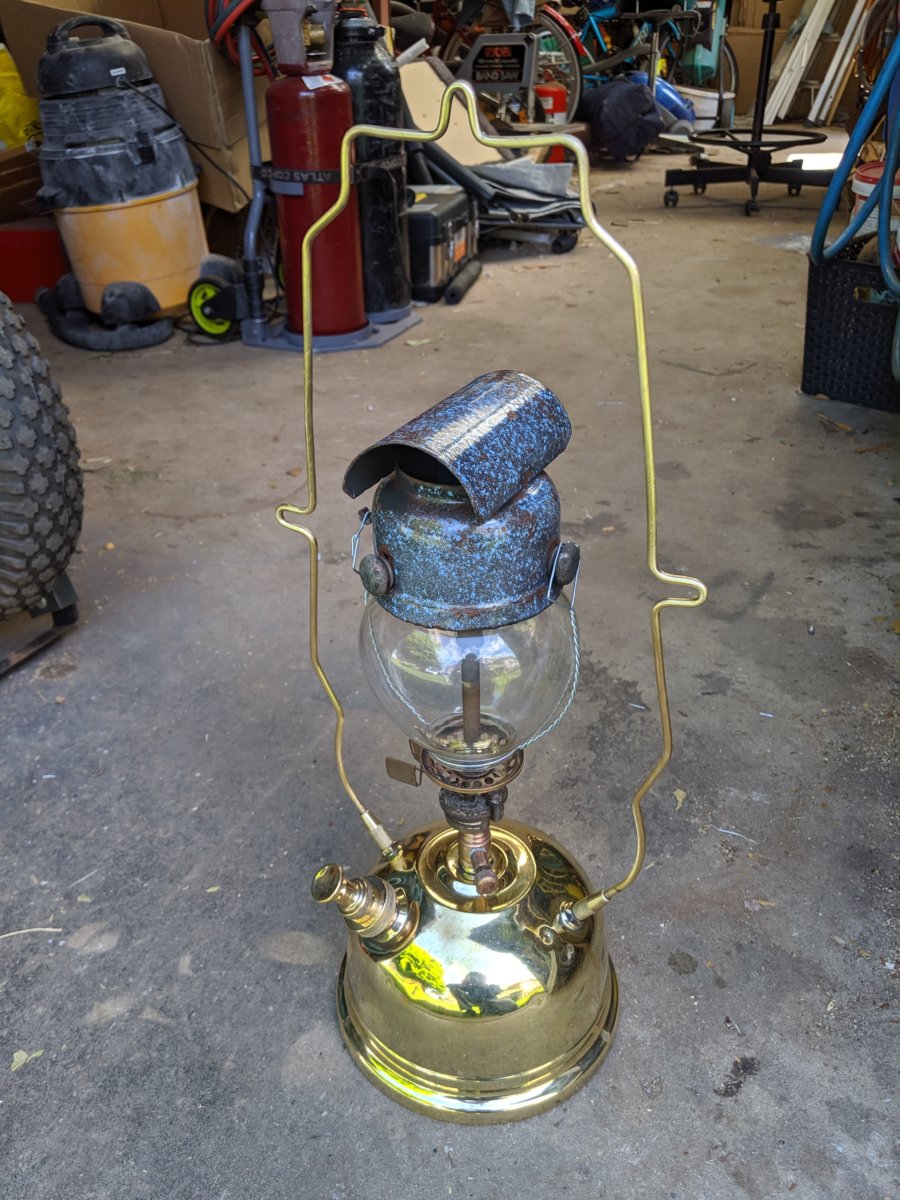

    IMG_20191019_101851.jpg The finished product

  8. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    4,866
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    It’s looking good, @MozzoSA.

    Cheers

    Tony

  9. MozzoSA

    MozzoSA Australia Subscriber

    Offline
    Joined:
    Oct 6, 2019
    Messages:
    45
    Location:
    South Australia
  10. AussiePete

    AussiePete Australia Subscriber

    Offline
    Joined:
    Nov 21, 2015
    Messages:
    1,486
    Location:
    Toowoomba Australia
    Very nice mate, very nice indeed. Well done.
    Cheers
    Pete

  11. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    4,866
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    Can you post a good photo of the hood, please?

    Thanks

    Tony

    @MozzoSA

  12. ROBBO55

    ROBBO55 Subscriber

    Offline
    Joined:
    Oct 21, 2014
    Messages:
    1,480
    Location:
    Somersby, New South Wales, Australia
    It's looking good Mozzo and I like the wire jig. :thumbup:

  13. MozzoSA

    MozzoSA Australia Subscriber

    Offline
    Joined:
    Oct 6, 2019
    Messages:
    45
    Location:
    South Australia
    Hi @Tony Press . Will take a couple of hood photos tomorrow. it looks good at a distance but the vitreous enamel has lots of small holes in it that have rusted. I'm considering finding a company to re-enamel it for me. When its done up I intend to return it to the guy who gave it to me as a gift.

  14. MozzoSA

    MozzoSA Australia Subscriber

    Offline
    Joined:
    Oct 6, 2019
    Messages:
    45
    Location:
    South Australia
    The Shade arrived this week so Im now looking into making the retainer clips. I decided the lamp wouldnt be complete without it and Im glad I did order it. @Tony Press or @AussiePete can one of you post the shape please?

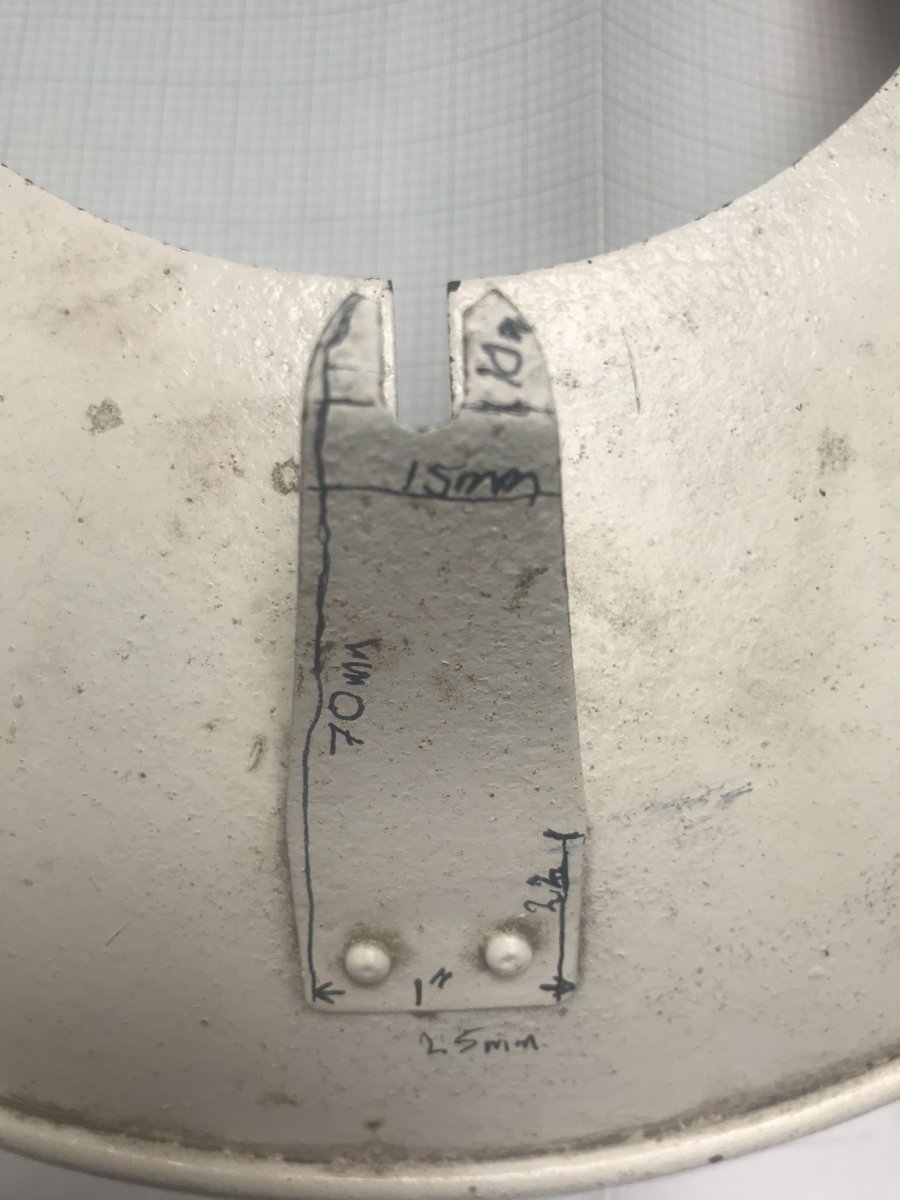

    Latest photo IMG_20191024_183442.jpg

    And for @Tony Press heres the closeups of the hood.
    IMG_20191026_114512.jpg IMG_20191026_114519.jpg

  15. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    4,866
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    @MozzoSA

    Overall length: 70mm
    Width at base: 25mm (1”)
    Width at tip: 10mm
    Length to point of taper: 22mm
    Slot: 5mm X 12mm




    Cheers

    Tony

  16. MozzoSA

    MozzoSA Australia Subscriber

    Offline
    Joined:
    Oct 6, 2019
    Messages:
    45
    Location:
    South Australia
  17. MozzoSA

    MozzoSA Australia Subscriber

    Offline
    Joined:
    Oct 6, 2019
    Messages:
    45
    Location:
    South Australia

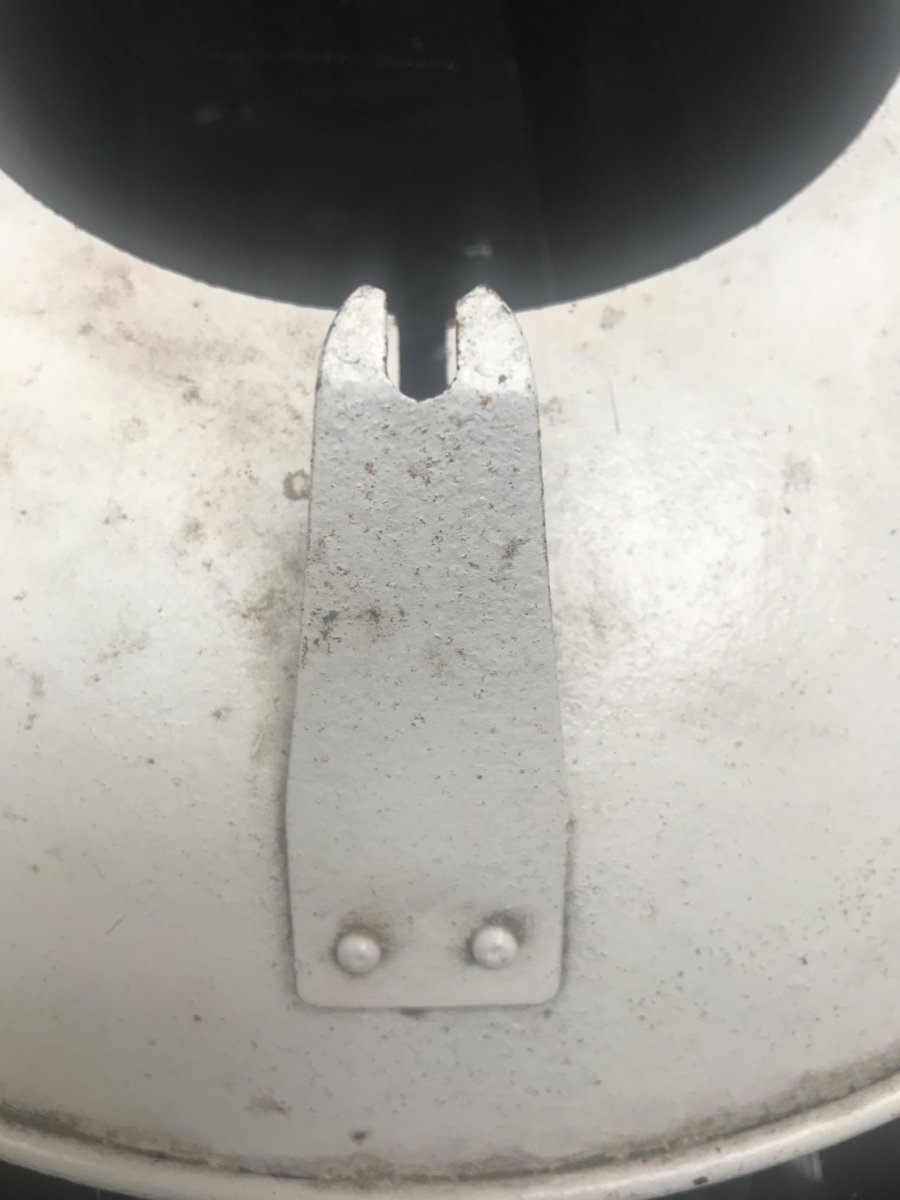

    Rivets… 5mm *3mm *3mm center drilled for flaring IMG_20191026_150545.jpg

  18. MozzoSA

    MozzoSA Australia Subscriber

    Offline
    Joined:
    Oct 6, 2019
    Messages:
    45
    Location:
    South Australia

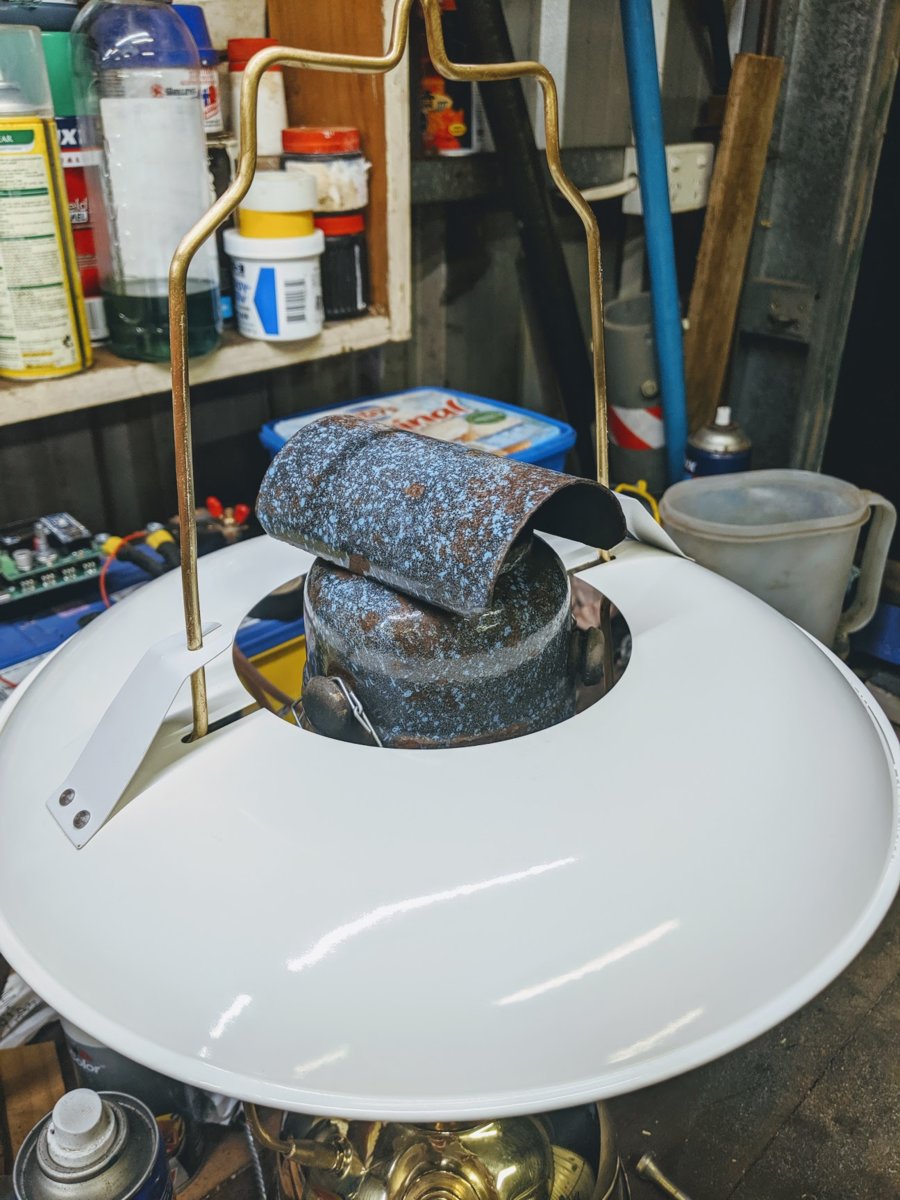

    Shade almost complete. I might have a second go at the paint colour on the retainer clips though as they don't quite match. IMG_20191028_202646.jpg

  19. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    4,866
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    Excellent!

    Cheers

    Tony

  20. AussiePete

    AussiePete Australia Subscriber

    Offline
    Joined:
    Nov 21, 2015
    Messages:
    1,486
    Location:
    Toowoomba Australia
    Well done. You have done an excellent job.
    Cheers
    Pete

  21. george

    george United States Subscriber

    Offline
    Joined:
    Nov 8, 2011
    Messages:
    1,142
    Location:
    USA
    Great job, well done!;)
    :thumbup::thumbup:

  22. ROBBO55

    ROBBO55 Subscriber

    Offline
    Joined:
    Oct 21, 2014
    Messages:
    1,480
    Location:
    Somersby, New South Wales, Australia
    Looks good. :thumbup::thumbup::thumbup:

  23. BigStevie

    BigStevie United Kingdom Subscriber

    Offline
    Joined:
    Dec 5, 2018
    Messages:
    649
    Location:
    Scottish Highlands
    Great job, looking good!

  24. MozzoSA

    MozzoSA Australia Subscriber

    Offline
    Joined:
    Oct 6, 2019
    Messages:
    45
    Location:
    South Australia
    Update. I sent the hood to Melbourne Enamelling today for a re-glaze. Crossing my fingers.

  25. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    4,866
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    Let us know how it goes, @MozzoSA

    Cheers

    Tony

  26. Graham P

    Graham P Australia Subscriber

    Offline
    Joined:
    Mar 3, 2012
    Messages:
    790
    Location:
    Albury area NSW AUstralia
    That hood looks good compared to some I have let us know who does them and cost please.

  27. MozzoSA

    MozzoSA Australia Subscriber

    Offline
    Joined:
    Oct 6, 2019
    Messages:
    45
    Location:
    South Australia
    Photo-IMG_20191119_193202-3.jpg The hood cost $50 to re-enamel in black. It's probably not as authentic Kayen but I don't think the guy I'm returning it to will care. I will take a better photo of the hood and post on the weekend.

  28. kero-scene

    kero-scene Subscriber

    Offline
    Joined:
    Jan 23, 2013
    Messages:
    177
    Location:
    Australia
    @MozzoSA

    Thanks for the update, I’ve thought about re-enamelling and it’s great to see an example.

  29. MozzoSA

    MozzoSA Australia Subscriber

    Offline
    Joined:
    Oct 6, 2019
    Messages:
    45
    Location:
    South Australia
    It did work really well but unless you had an especially sentimental or valuable piece it may not be worth it. These guys are old school so happy to throw a hood in the kiln from time to time.

  30. MozzoSA

    MozzoSA Australia Subscriber

    Offline
    Joined:
    Oct 6, 2019
    Messages:
    45
    Location:
    South Australia
    Closeup of the hood IMG_20191121_182817.jpg
