    Dears,

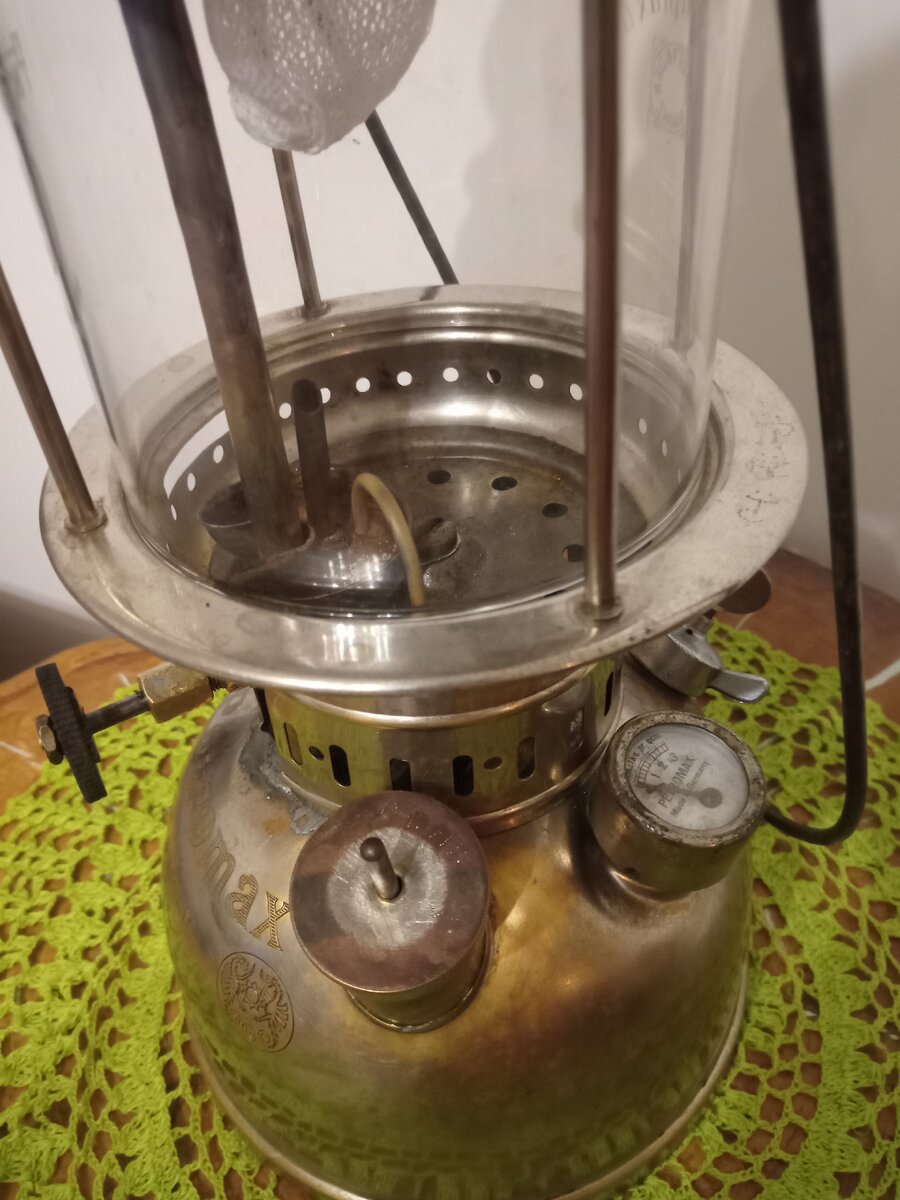

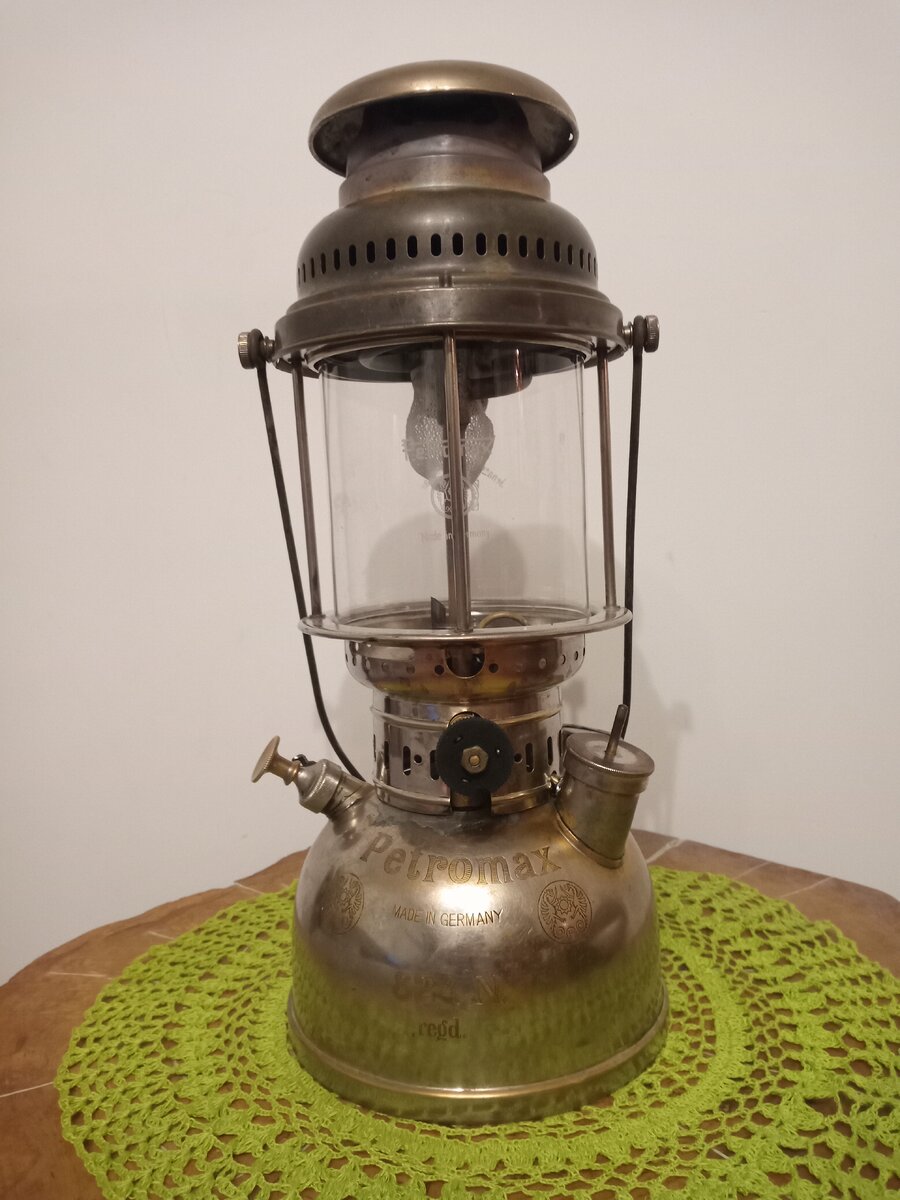

    Please find below Petromax 824N.

    Manufacturing date was considered here – most likely march 1927:

    Petromax 824 N advice kind request | Classic Pressure Lamps & Heaters

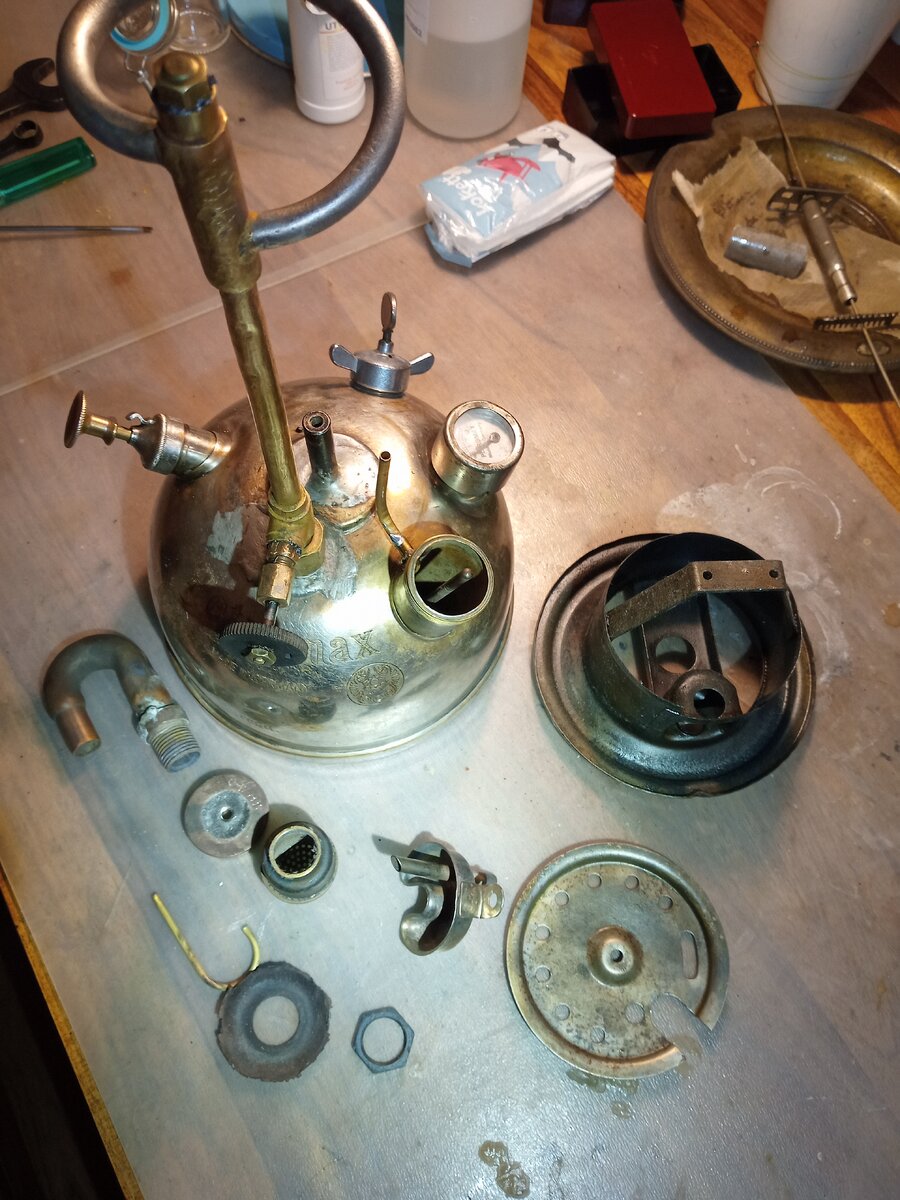

    Lamp was repaired before, but I had to:

    - seal the leaking tank

    - silver solder preheating cup

    - silver solder J-tube (tube was assembled somehow by somebody by squeezing two pieces together and connecting them by some graphite packing, or something similar gunky stuff)

    - shorted the conducing rod (it was hand made by somebody, but too long – just like in the regular Px lamps)

    - make these small, curved brass pipes running from preheating pump

    - general cleaning and seals replacement etc.

    - glass is replacement

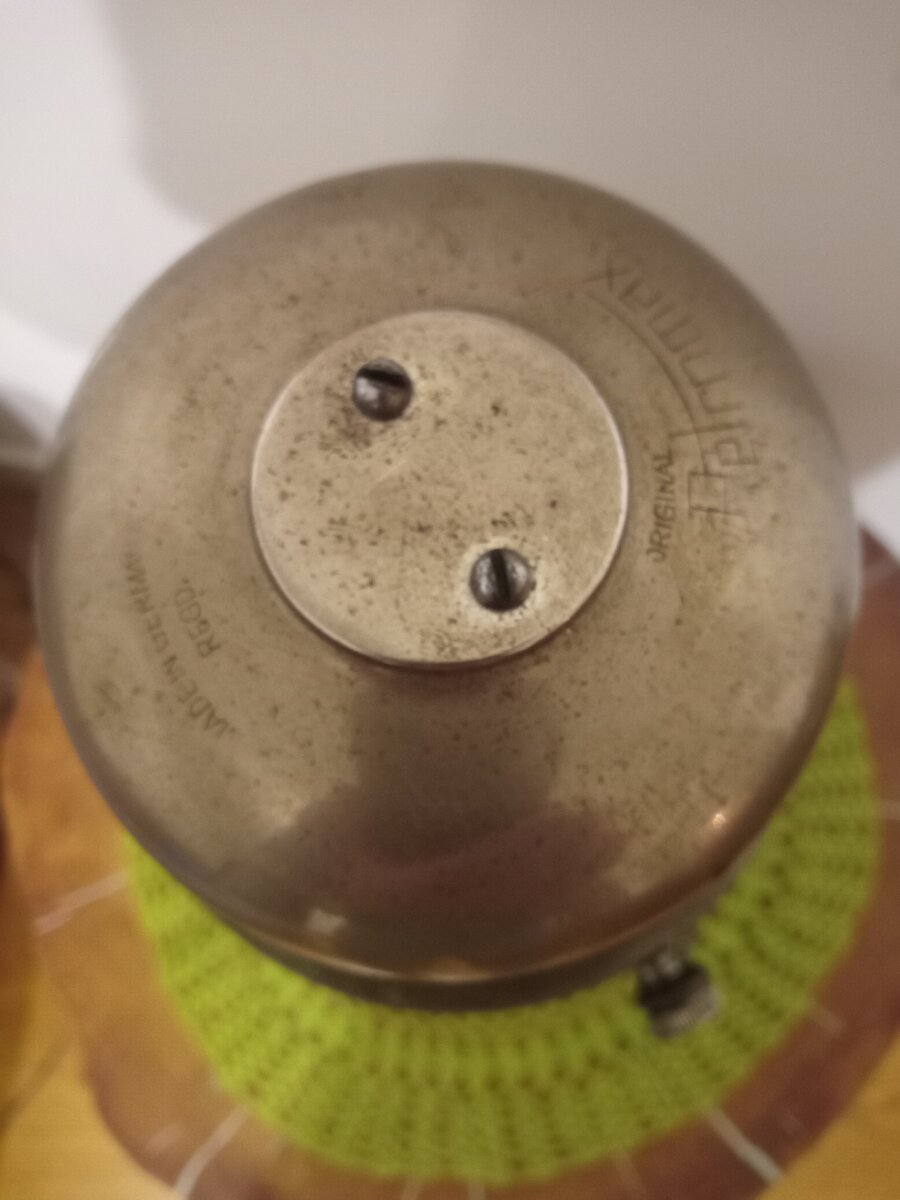

    Lamp has interesting signs/signatures made by somebody on vaporizer, preheating pump lid and cage – just to punch this stuff had to take somebody some time, but obviously he/she was proud of the repair done. Personally, I enjoy such personalization’s which make things unique.

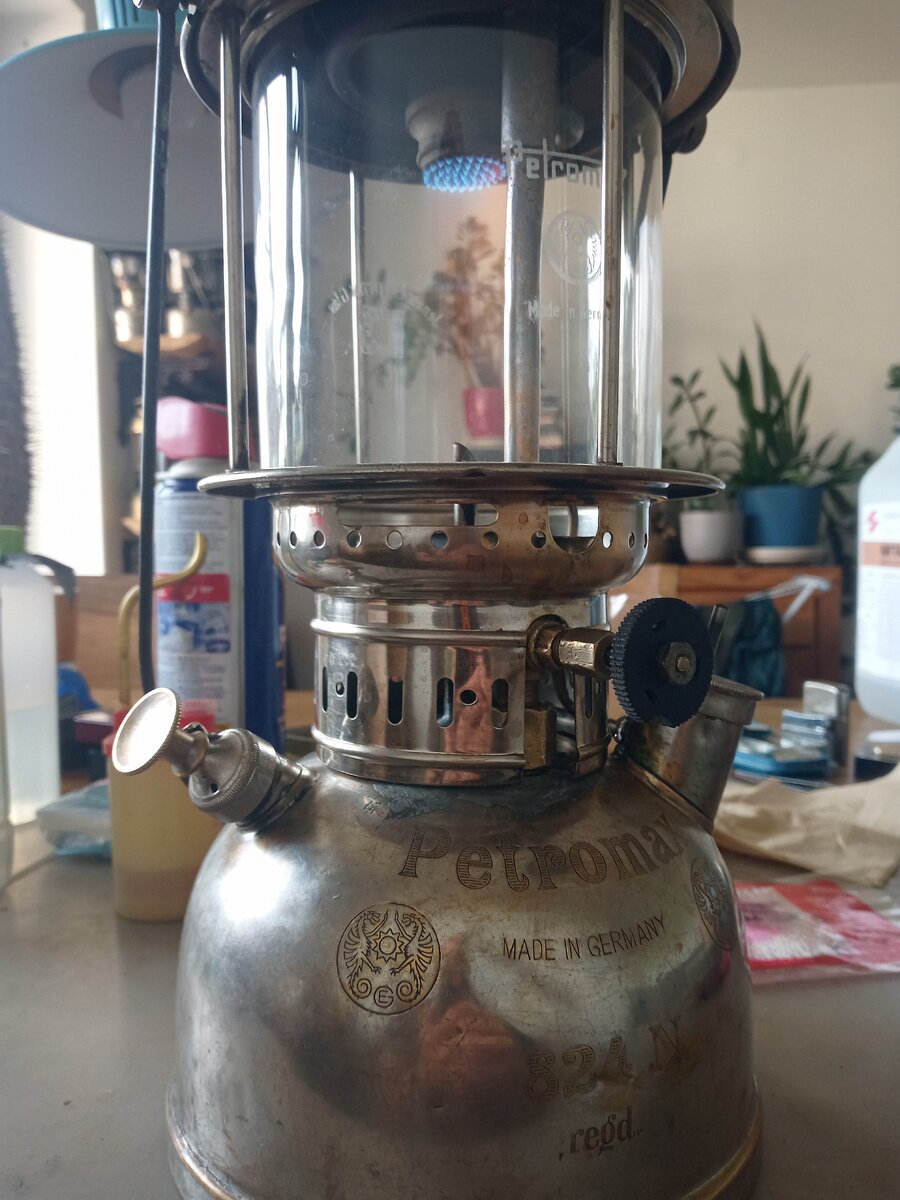

    Anyway, at the end it is what it is – rare, old lamp working again :)

    Enjoy,

    All the best

    Piotrek
    11.jpg 12.jpg 13.jpg 14.jpg 15.jpg 16.jpg

  2. Camp numao Japan

    Offline
    Joined:
    Jan 13, 2024
    Messages:
    301
    Location:
    Japan
    Congratulations on completing the restoration!:clap:

    It’s wonderful to see it lighting up properly.

    It’s hot in Japan right now, but it makes me want to light up a lantern once autumn arrives.
