Taymar butane lamp

Discussion in 'Other Brands' started by presscall, Sep 22, 2025 at 10:29 PM.

  1. presscall

    presscall United Kingdom Subscriber

    Offline
    Joined:
    Jan 3, 2011
    Messages:
    1,687
    Location:
    Lancashire, UK
    I thought this worthy of a post in the Reference Gallery of ‘classics’ because of the enamelled hood clearly based on a Tilley equivalent and the corresponding frosted 171-pattern globe. There was some discussion in THIS post of a globe such as this.

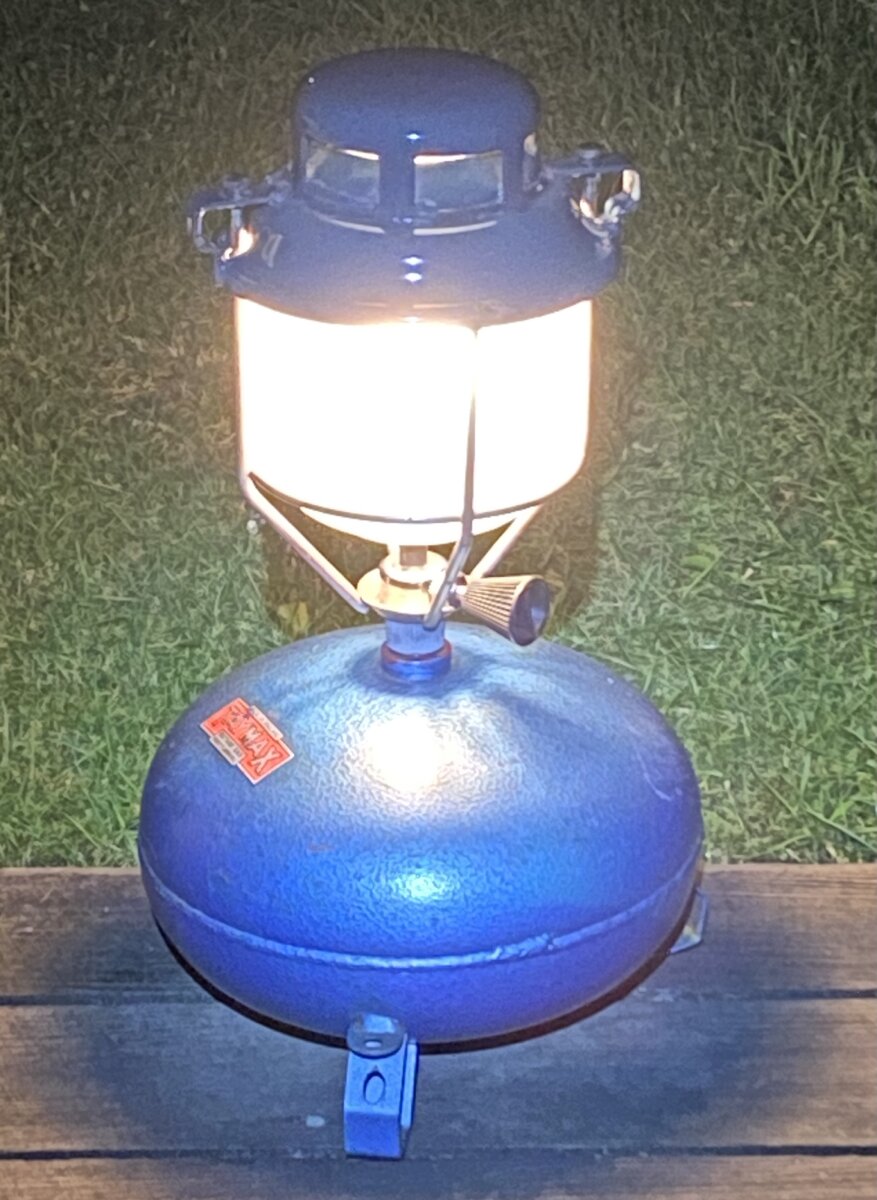

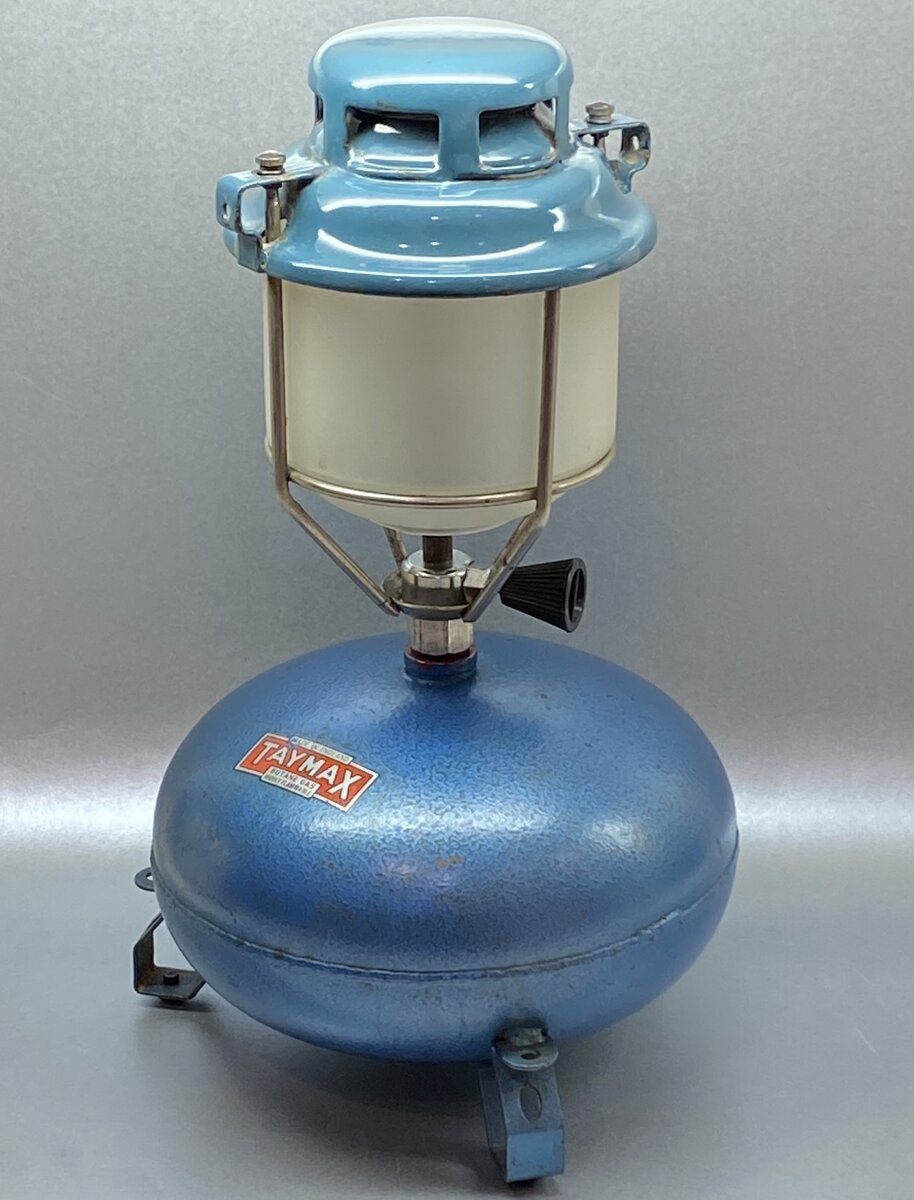

    A Taymax-branded refillable butane tank, equipped with a Campingaz outlet screw fitting and with a stamped impression of one of the feet to specify a 3lbs (1.36kg) butane capacity.

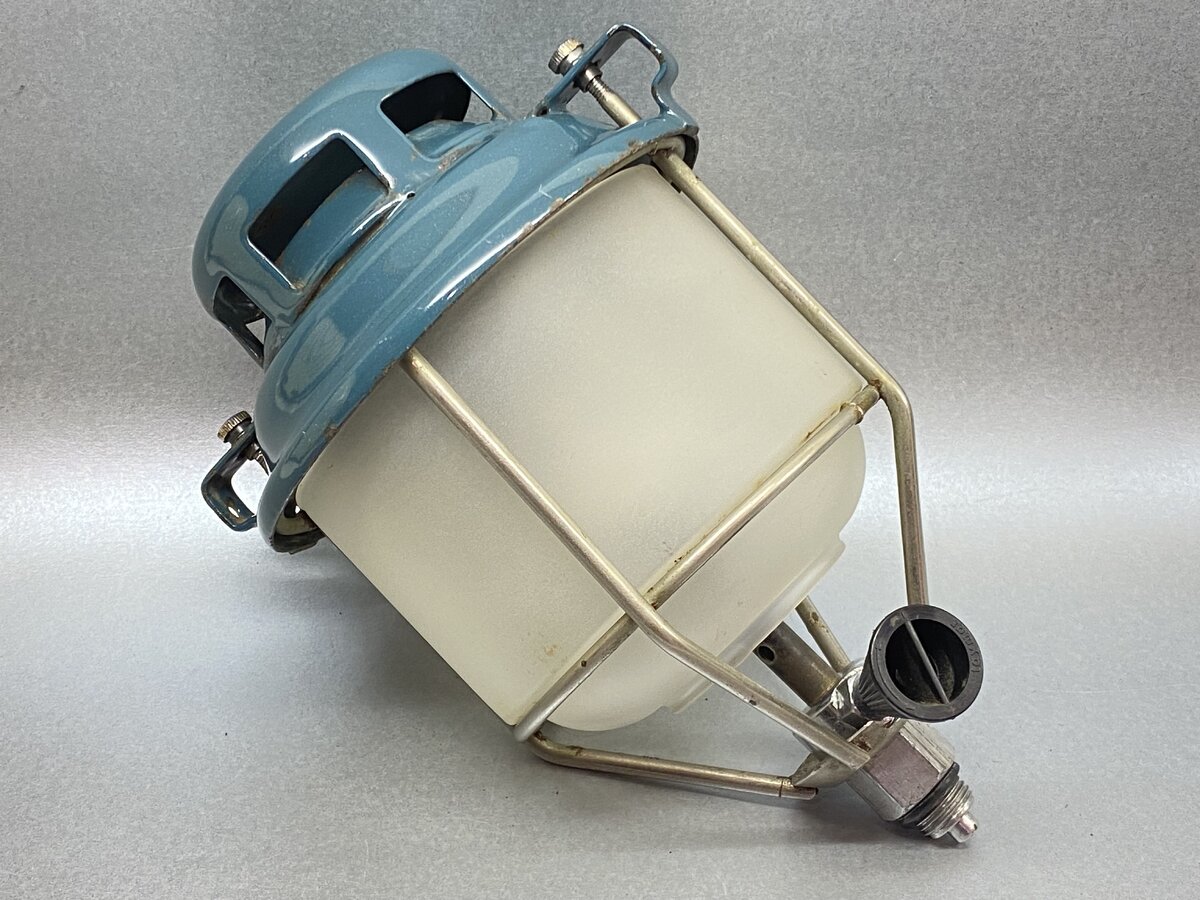

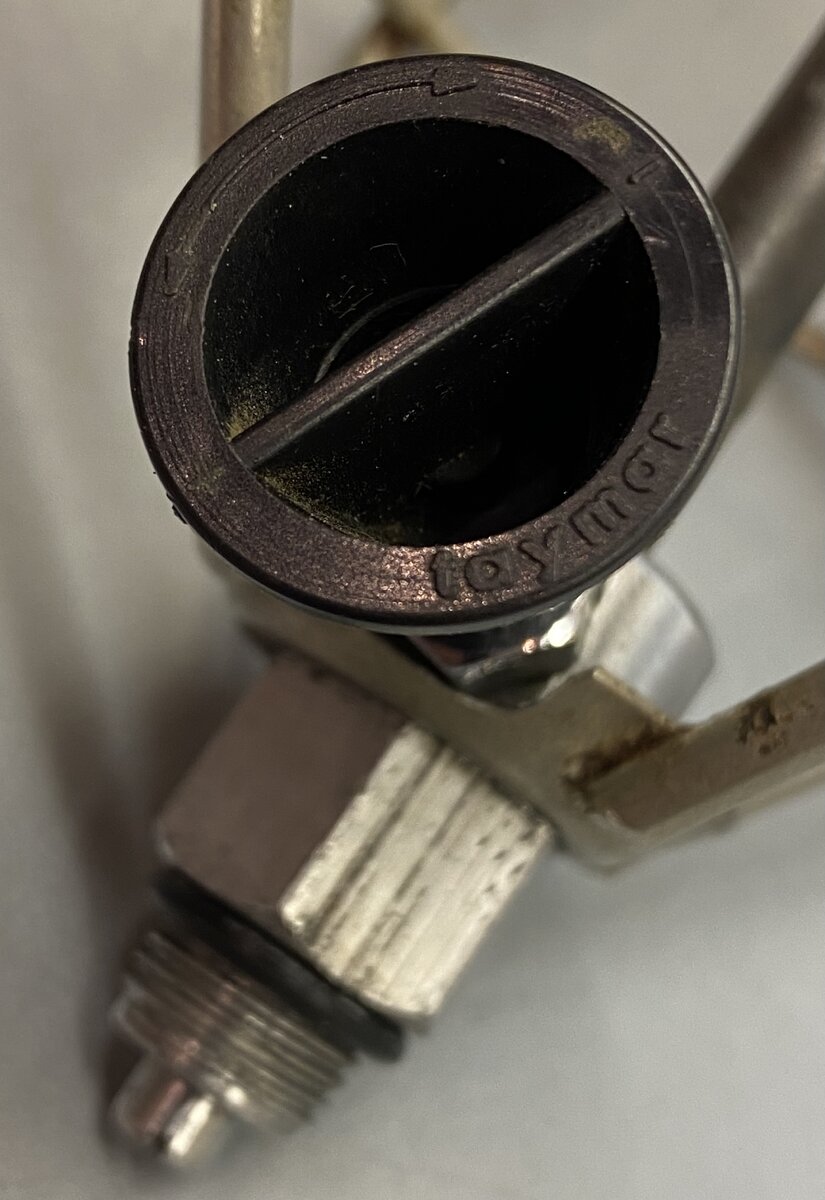

    The lamp’s control knob marks it as a Taymar product.

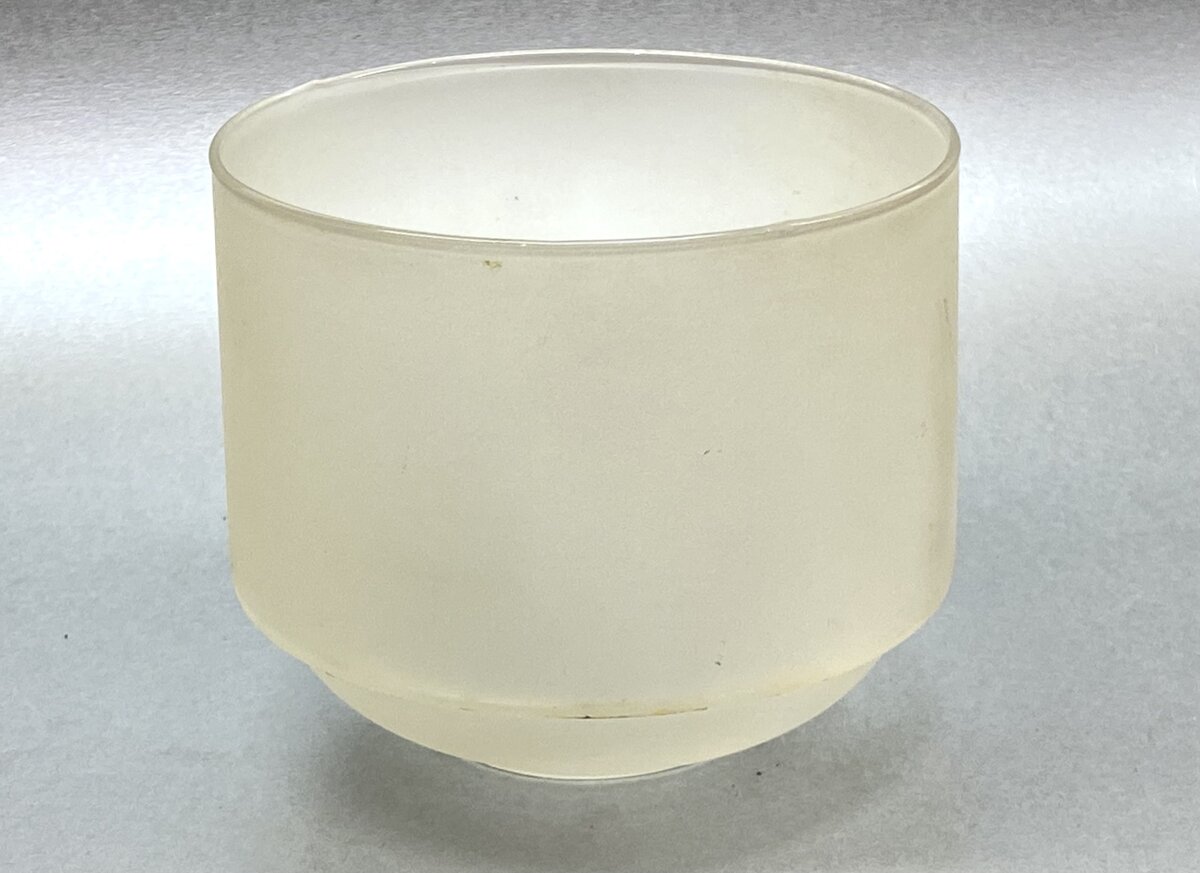

    The globe has no identifying maker’s mark.

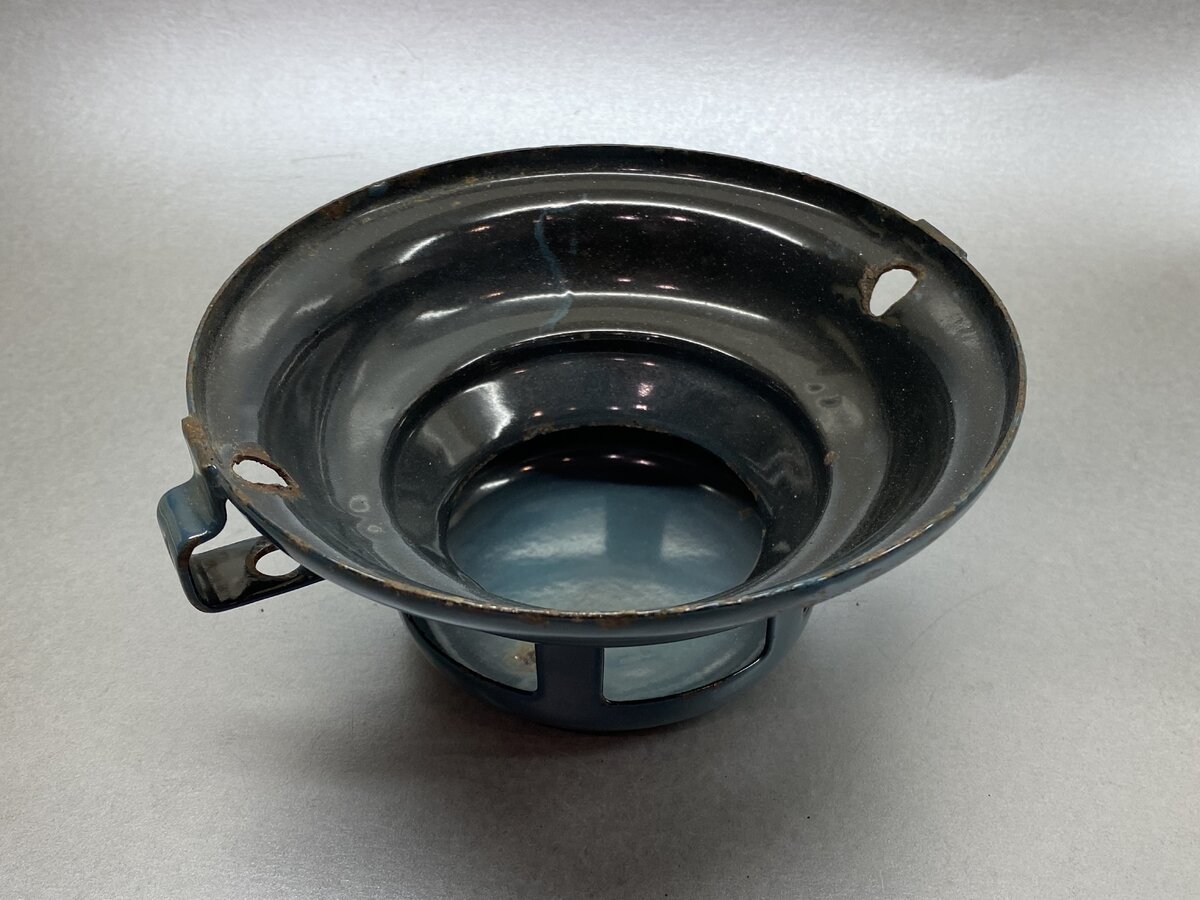

    The hood, based on a Tilley pattern …

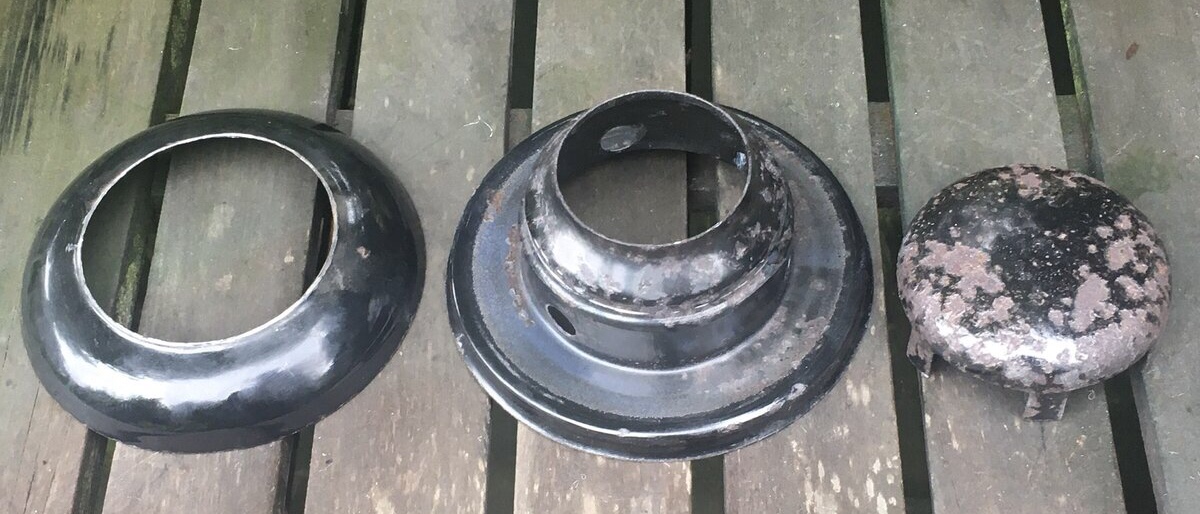

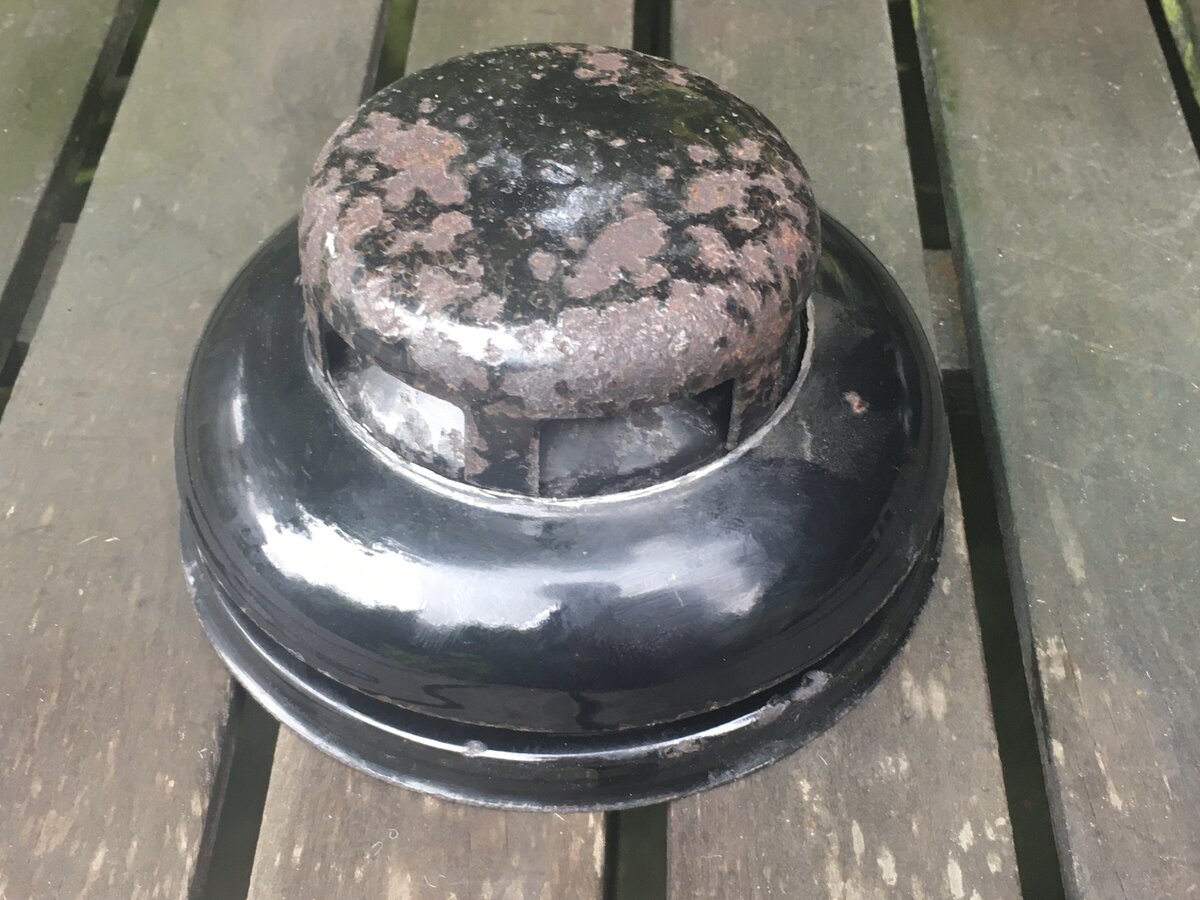

    … but without the inner hood component on which the burner is mounted - dismantled here for THIS Tilley X359 project.

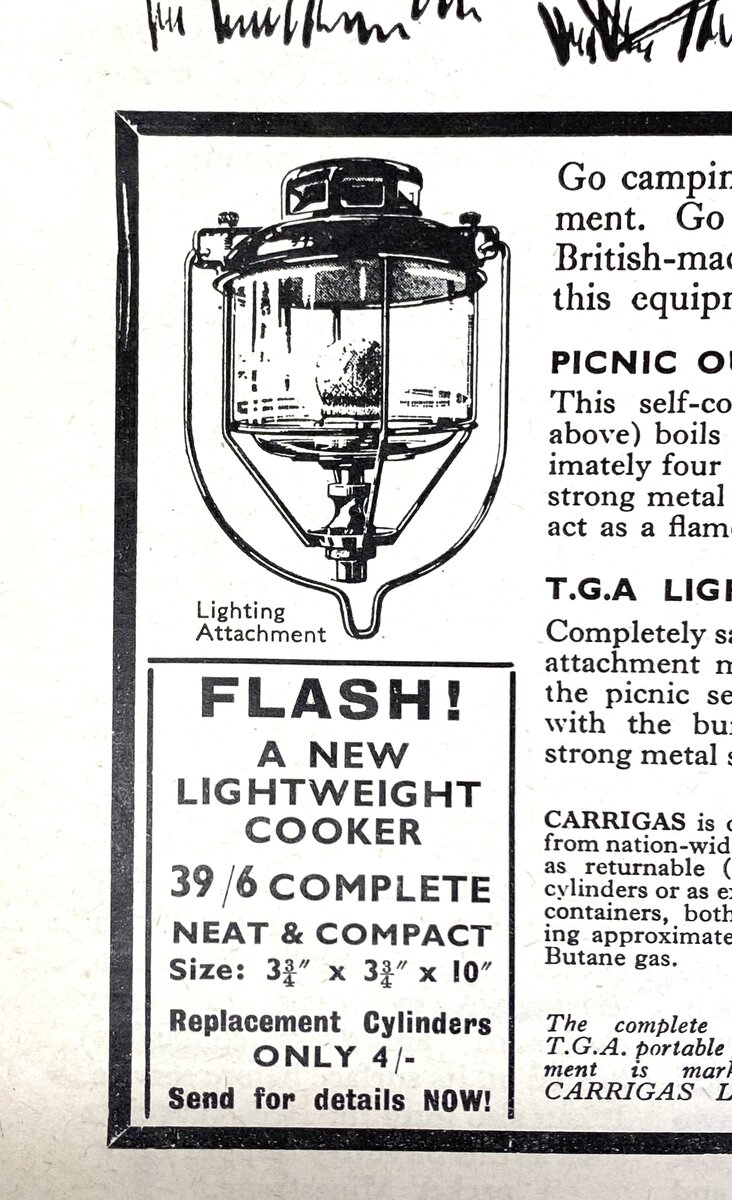

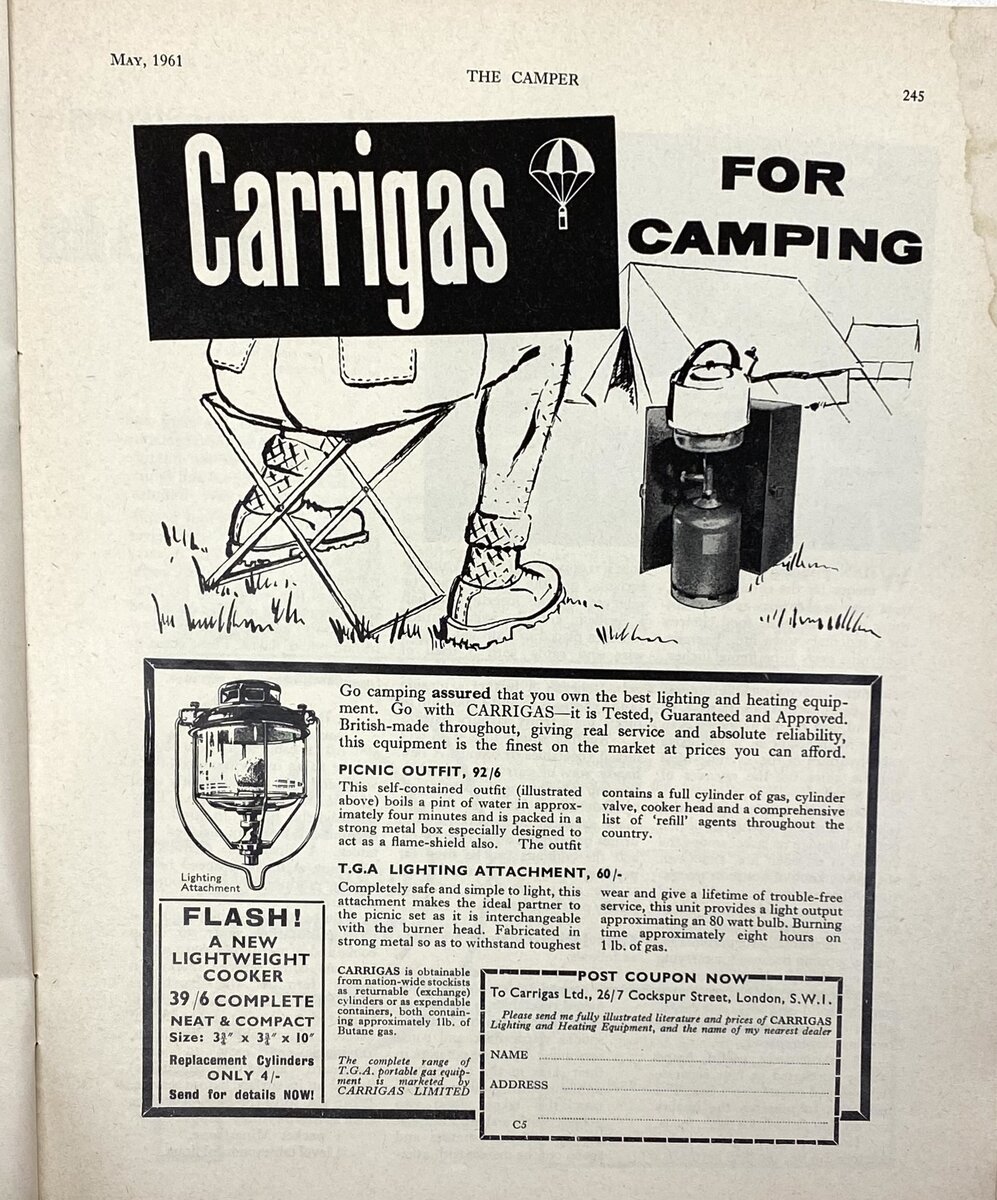

    Other manufacturers too were evidently inspired by the Tilley hood and globe, such as this Carrigas product on sale in 1961.

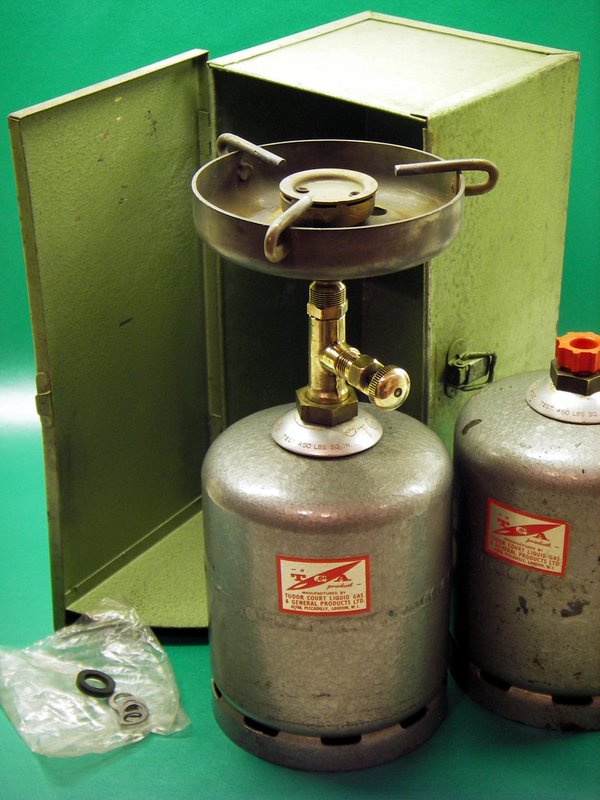

    The advertisement refers to Carrigas as the company marketing that lamp, but with a company T.G.A. as the manufacturer. T.G.A. was Tudorcourt Gas Appliances, which I encountered with THIS butane stove.



    I haven’t located an example of the T.G.A. lamp however. I expect sales of the Campingaz-fitting Taymar lamp benefitted from the French company’s market saturation, swamping the Carrigas operation. T.G.A. gas cylinders and the stoves are rare survivors in comparison to Campingaz and CG-fitting contemporaries.


    John

    Last edited: Sep 22, 2025 at 10:40 PM
  2. presscall

    presscall United Kingdom Subscriber

    Offline
    Joined:
    Jan 3, 2011
    Messages:
    1,687
    Location:
    Lancashire, UK

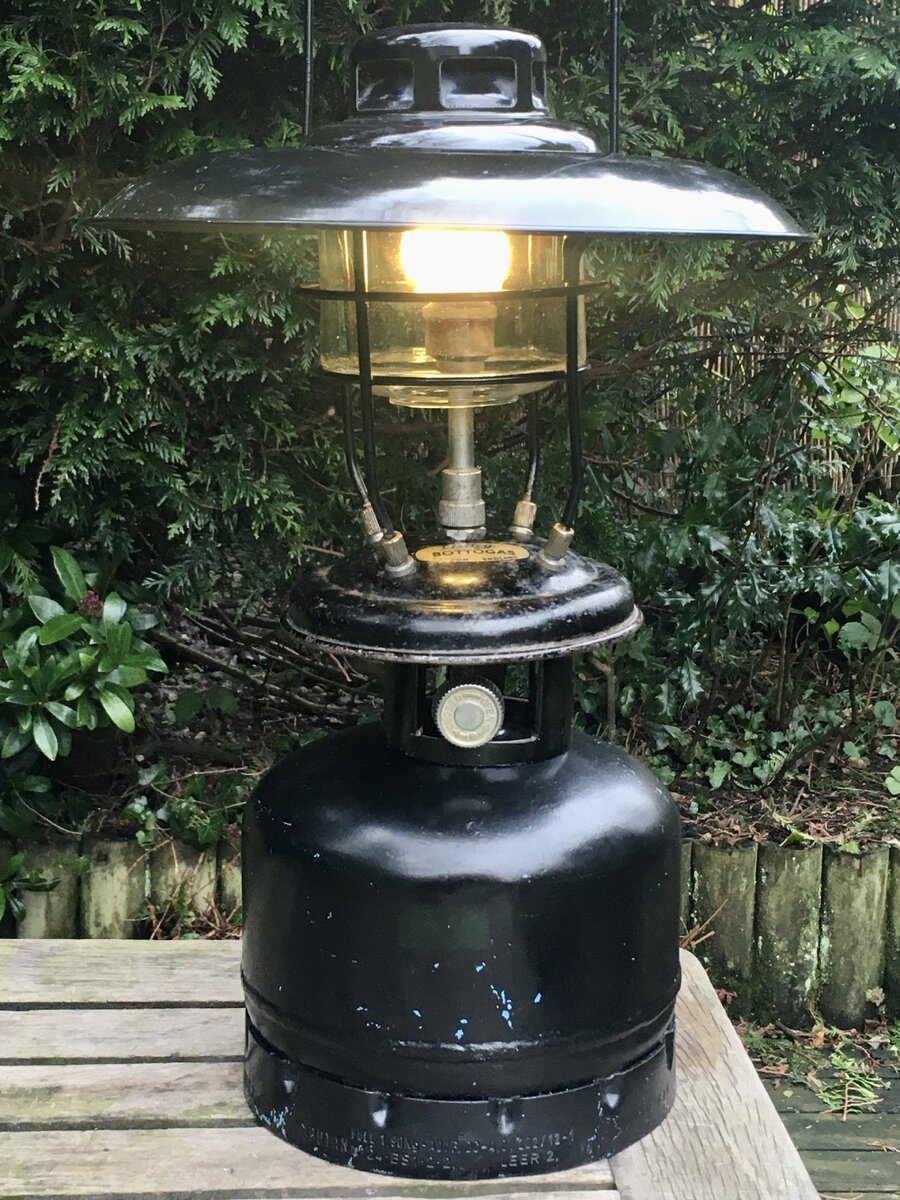

    Tilley got in on the act (butane lamps) too of course, such as THIS Bottogas-fitting contraption.

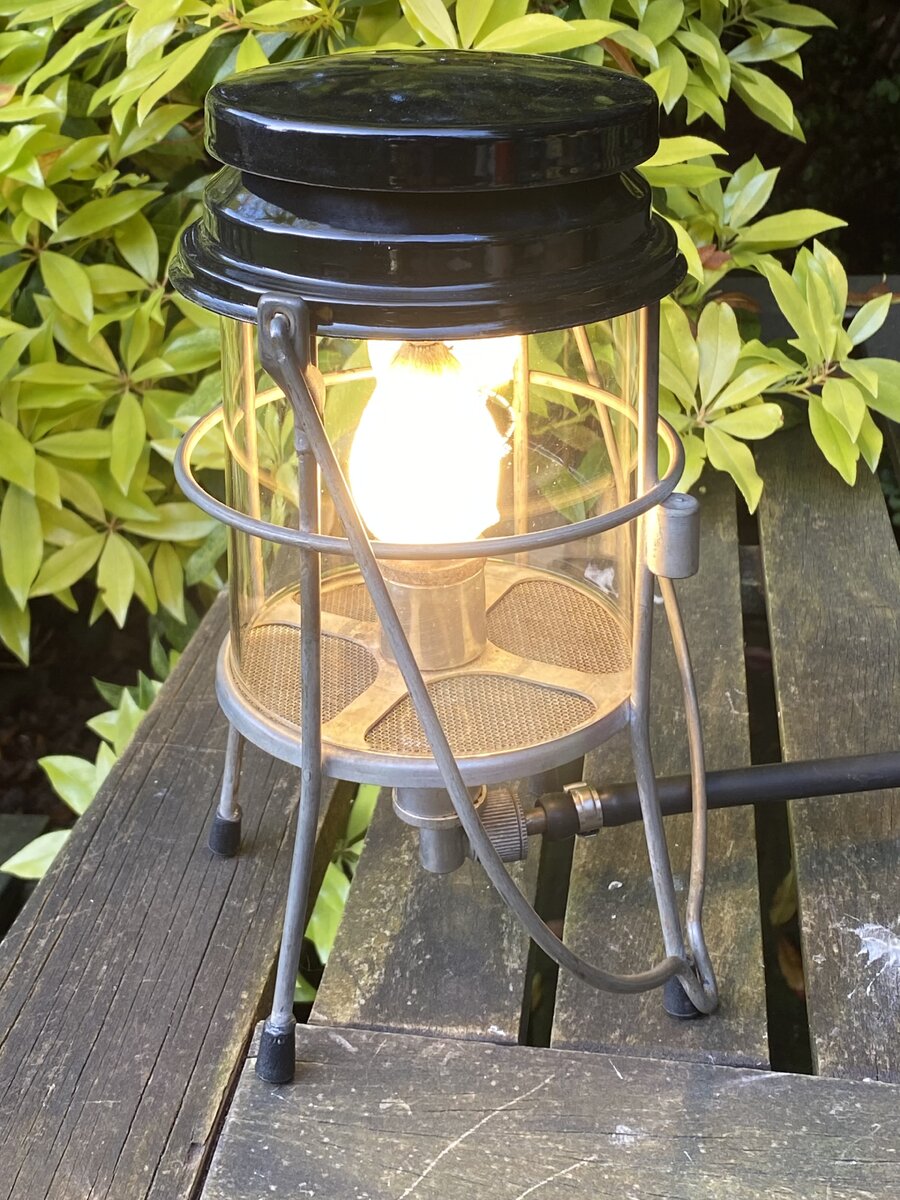

    They improved on that - sleeker, more compact - with their GL602, but dropping the characteristic Tilley hood and globe.


  3. Jean J

    Jean J Subscriber

    Offline
    Joined:
    Jun 25, 2011
    Messages:
    2,895
    Location:
    N E Scotland
    What a cute wee thing that blue lamp is @presscall.

  4. ROBBO55

    ROBBO55 Subscriber

    Offline
    Joined:
    Oct 21, 2014
    Messages:
    4,174
    Location:
    Somersby, New South Wales, Australia
    The Taymar is in good condition John :thumbup:

  5. presscall

    presscall United Kingdom Subscriber

    Offline
    Joined:
    Jan 3, 2011
    Messages:
    1,687
    Location:
    Lancashire, UK
    @Jean J A change from Tilley brown and black hoods certainly!

    @ROBBO55 I suspect that with no physical connection to the hood, the butane burner doesn’t subject the enamel to the same stresses that the paraffin burner does.
