Tilley Pork pie problem

Discussion in 'Fettling Forum' started by malcolm race, Jan 12, 2021.

  1. malcolm race

    malcolm race United Kingdom Subscriber

    Offline
    Joined:
    Sep 24, 2018
    Messages:
    264
    Location:
    Bradford uk
    Thanks Henry, & thanks again for the advice

  2. malcolm race

    malcolm race United Kingdom Subscriber

    Offline
    Joined:
    Sep 24, 2018
    Messages:
    264
    Location:
    Bradford uk
    Well it still needs an overhaul & a respray, but here it is as it stands now. The parts have been sourced from all over during 19 & the 2020 lockdown, I think it’s ok but I’m sure I’ll be put right if it’s not.
    Cheers
    Malcolm 9FB584A1-5137-4A4C-8F71-C88097433288.jpeg

  3. Gary Waller

    Gary Waller Subscriber

    Offline
    Joined:
    Apr 3, 2018
    Messages:
    455
    It’s burning well but looks to me like the hood is not fully set down in place.

  4. ROBBO55

    ROBBO55 Subscriber

    Offline
    Joined:
    Oct 21, 2014
    Messages:
    2,278
    Location:
    Somersby, New South Wales, Australia
    It's well on its way to completion, congratulations Malcolm :thumbup:

  5. malcolm race

    malcolm race United Kingdom Subscriber

    Offline
    Joined:
    Sep 24, 2018
    Messages:
    264
    Location:
    Bradford uk
    Your right Gary, something there isn’t right, but the burner is fully engaged onto the top of the vapouriser. As I said parts from all over. The cock is fully screwed into the fount, the frame is on right, but the hood won’t go any further down. It’s as though the frame is too short

  6. Henry Plews

    Henry Plews Subscriber

    Offline
    Joined:
    Jun 23, 2014
    Messages:
    1,736
    Location:
    North Yorkshire
    Well done. You've done the hard part, sit back and enjoy the light for a while.

  7. Gary Waller

    Gary Waller Subscriber

    Offline
    Joined:
    Apr 3, 2018
    Messages:
    455
    I’m assuming you haven’t got the longer 169 vaporiser in?
    Otherwise I’m not sure, something isn’t marrying up quite right. It’s surly got to be between the burner and vaporiser...:-k

  8. malcolm race

    malcolm race United Kingdom Subscriber

    Offline
    Joined:
    Sep 24, 2018
    Messages:
    264
    Location:
    Bradford uk
    No it’s the 606 vapouriser,

  9. Fireexit1

    Fireexit1 United Kingdom Subscriber

    Offline
    Joined:
    Jun 13, 2020
    Messages:
    797
    Location:
    Brighton UK
    Well it is up and running - 90% of the battle. the rest is icing on the cake - good job sir !

  10. Mr cod

    Mr cod Subscriber

    Offline
    Joined:
    Jan 21, 2018
    Messages:
    179
    Location:
    Aylsham norfolk
    It may well be a later x246 frame on a pork pie tank which I do believe has slightly different length legs than a pork pie frame.
    Regards ian

  11. malcolm race

    malcolm race United Kingdom Subscriber

    Offline
    Joined:
    Sep 24, 2018
    Messages:
    264
    Location:
    Bradford uk
    Thanks Ian, if the guardsman frame is different to the pork pie model that is most likely the problem. I’ll look into that a bit more

  12. Henry Plews

    Henry Plews Subscriber

    Offline
    Joined:
    Jun 23, 2014
    Messages:
    1,736
    Location:
    North Yorkshire
    @malcolm race

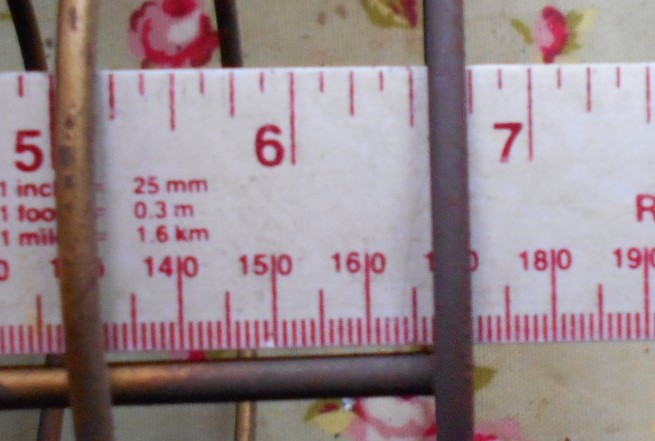

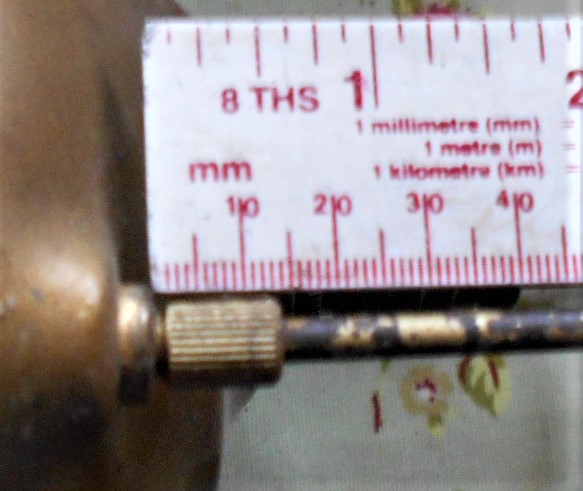

    I can't get at a pork pie X246 with that frame but here are images of the frame from a regular Guardsman. Note where I have the end of the ruler in the first image.

    DSCN0718 (2).JPG

    DSCN0720 (2).JPG

  13. Mr cod

    Mr cod Subscriber

    Offline
    Joined:
    Jan 21, 2018
    Messages:
    179
    Location:
    Aylsham norfolk
    I've just been out to my shed to measure the cages, guardsman as Henry shows is six and three quarter inches, pork pie cage is seven inches, hope this helps.
    Regards Ian.

  14. malcolm race

    malcolm race United Kingdom Subscriber

    Offline
    Joined:
    Sep 24, 2018
    Messages:
    264
    Location:
    Bradford uk
    Thanks again Henry, yes my frame matches those measurements, I reckon it should be at least 1/4” taller. Which Ian has confirmed. I’ve literally just won another on the bay of evil for a very good price, fingers crossed if will be right, I’ll report when it arrives.
    cheers
    Malcolm

  15. James K

    James K United Kingdom Subscriber

    Offline
    Joined:
    Nov 10, 2017
    Messages:
    376
    Very interesting, I have been playing with some of those cages trying to get enough bits together to build a pork pie lantern.
    Now I know what to check for.

  16. malcolm race

    malcolm race United Kingdom Subscriber

    Offline
    Joined:
    Sep 24, 2018
    Messages:
    264
    Location:
    Bradford uk
    Well the new frame came today, and it’s right this time. The hood sits down properly, and with a deep glass in, the pre-heater fits under it much easier. Happy days

  17. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    7,025
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    Excellent!


    Cheers

    Tony

  18. Mr cod

    Mr cod Subscriber

    Offline
    Joined:
    Jan 21, 2018
    Messages:
    179
    Location:
    Aylsham norfolk
    Glad it's all come together in the end
