Glas cutter?

Discussion in 'Fettling Forum' started by tretrop, Apr 24, 2020.

  1. tretrop

    tretrop Sweden Subscriber

    Offline
    Joined:
    Jul 17, 2018
    Messages:
    86
    Location:
    Sweden
    Could this be of use?
    Cutter

  2. BigStevie

    BigStevie United Kingdom Subscriber

    Offline
    Joined:
    Dec 5, 2018
    Messages:
    1,387
    Location:
    Scottish Highlands
    I’ve never tried globe cutting, the tool does look like it could be useful...

  3. X246A

    X246A United Kingdom Subscriber

    Offline
    Joined:
    Jan 11, 2011
    Messages:
    1,104
    Location:
    Norfolk, England
    @tretrop

    Could be useful on modern glass. Someone on this forum cuts cafetière glasses down for their lanterns. I forget exactly who, but it may have been @ColinG. Thanks for the link.

    Regards Jeremy

  4. Blueflame Canada

    Online
    Joined:
    Aug 29, 2016
    Messages:
    39
    Location:
    Montreal Canada
    I see that one use is making drinking glasses from bottles. Is the cut edge sharp enough to cut you?

  5. ColinG

    ColinG United Kingdom Subscriber

    Offline
    Joined:
    Oct 2, 2017
    Messages:
    2,902
    Yes Jeremy, that was me! I haven't done it for a while but I'll need to again soon to finish off my scrap heap 'Southern Vectis' Bialaddin!

  6. X246A

    X246A United Kingdom Subscriber

    Offline
    Joined:
    Jan 11, 2011
    Messages:
    1,104
    Location:
    Norfolk, England
    @Blueflame

    I’m sure any cut glass would need smoothing off before drinking from it.

    Regards Jeremy

  7. isfuzzy

    isfuzzy Subscriber

    Offline
    Joined:
    Feb 13, 2014
    Messages:
    180
    Location:
    Singapore
    I've tried cutting bottles like that, it works.
    I've tried cutting modern tempered glass globe, nothing happened.. the glass did not even crack.. :doh:

  8. ColinG

    ColinG United Kingdom Subscriber

    Offline
    Joined:
    Oct 2, 2017
    Messages:
    2,902
    If I need one I'll probably make my own but currently I use a pillar drill/bench press drill and a diamond wheel to cut Pyrex coffee press inserts down to size.

  9. george

    george United States Subscriber

    Offline
    Joined:
    Nov 8, 2011
    Messages:
    2,348
    Location:
    USA
    You guys never cease to amaze me... some of the things you come up with. They say, "necessity is the Mother of invention". I believe it!:mrgreen:

  10. Fireexit1

    Fireexit1 United Kingdom Subscriber

    Offline
    Joined:
    Jun 13, 2020
    Messages:
    155
    Location:
    Brighton UK
    I remember filling coke bottles with old engine oil, and then plunging a glowing red screwdriver into it. The shock change of surface tension would crack the glass at the level of the oil.
    Chris

  11. Jean J

    Jean J Subscriber

    Offline
    Joined:
    Jun 25, 2011
    Messages:
    1,746
    Location:
    N E Scotland
    Over to you Colin!

  12. podbros

    podbros United Kingdom Subscriber

    Offline
    Joined:
    Dec 27, 2015
    Messages:
    1,223
    Location:
    Wirral
    @ColinG ...I for one would like to see a short video on this subject, please? :thumbup:

  13. ColinG

    ColinG United Kingdom Subscriber

    Offline
    Joined:
    Oct 2, 2017
    Messages:
    2,902
    OK... I'll sort something out by I've run out of cafetiere inserts.... although I can probably use something else to demonstrate the principle.

  14. malcolm race

    malcolm race United Kingdom Subscriber

    Offline
    Joined:
    Sep 24, 2018
    Messages:
    170
    Location:
    Bradford uk
    I'd be interested to see that as well Colin

  15. ColinG

    ColinG United Kingdom Subscriber

    Offline
    Joined:
    Oct 2, 2017
    Messages:
    2,902
    Ok... I might have something I can show you. I'll put something up tomorrow.

  16. ColinG

    ColinG United Kingdom Subscriber

    Offline
    Joined:
    Oct 2, 2017
    Messages:
    2,902
    Sorry it took a while, but here is my set-up for cutting down coffee press Pyrex glass liners.



    Please excuse the messy work environment but my workshop is long overdue a good clean up!

    As you can see, this particular Pyrex glass broke just as I was getting close to finishing it! It is a risky business but as these cafetiere inserts are cheap I'm not too bothered.

  17. Tom Pedersen

    Tom Pedersen Denmark Subscriber

    Offline
    Joined:
    Nov 13, 2019
    Messages:
    74
    Location:
    Denmark
    Hey.
    Is the name of these glasses (coffee press Pyrex glass)
    Can not find them on www.
    Maybe someone has a link.
    Tom

  18. ColinG

    ColinG United Kingdom Subscriber

    Offline
    Joined:
    Oct 2, 2017
    Messages:
    2,902

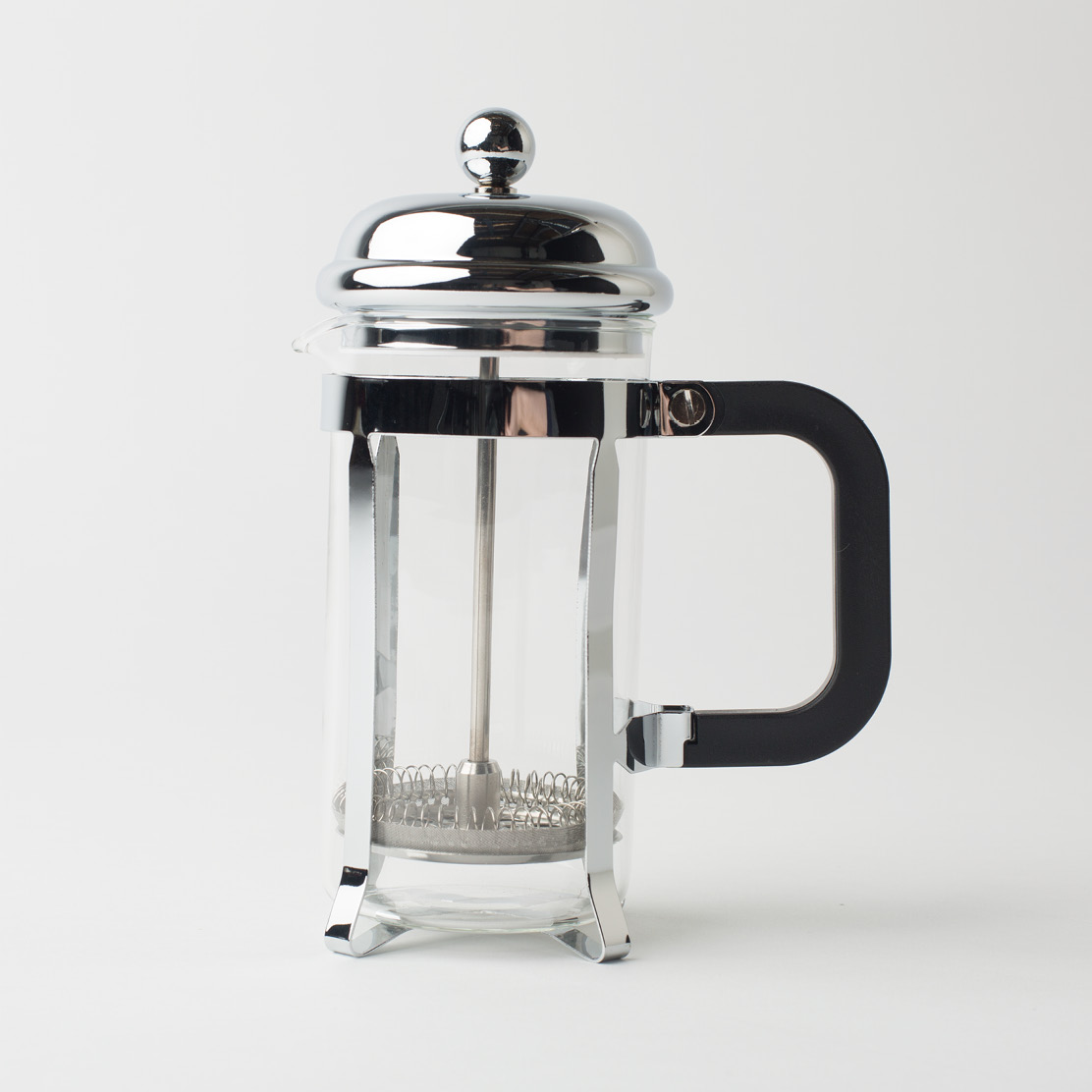

    This is what I use... I remove the Pyrex glass from the metal or plastic and then cut it down to size.



    I ask around or go to charity shops or Goodwill type outlets to get them as cheap as possible, usually between £2 - £5

    You can buy then new for as little as £6 but I like the challenge of finding them cheaply!

    Diamond cutters can be purchased cheap on eBay.

  19. WimVe

    WimVe Subscriber

    Offline
    Joined:
    Aug 3, 2011
    Messages:
    1,957
    I think that cutting the bottom out first will reduce the cutting vibrations whicj maybe the cause of cracking.

  20. ColinG

    ColinG United Kingdom Subscriber

    Offline
    Joined:
    Oct 2, 2017
    Messages:
    2,902
    You may be right! Sometimes I've only made one cut and left the pouring spout as a lighting hole!

  21. george

    george United States Subscriber

    Offline
    Joined:
    Nov 8, 2011
    Messages:
    2,348
    Location:
    USA
    You guys never cease to amaze me... Wow! I would never have thought of doing something like this!8]:thumbup:

  22. malcolm race

    malcolm race United Kingdom Subscriber

    Offline
    Joined:
    Sep 24, 2018
    Messages:
    170
    Location:
    Bradford uk
    Colin do you cut right through and then continue all round, or do you sort of score it all round gradually getting deeper until right through

  23. ColinG

    ColinG United Kingdom Subscriber

    Offline
    Joined:
    Oct 2, 2017
    Messages:
    2,902
    I cut round and round slowly, getting deeper with each rotation. It's slow work and it can go wrong. I need a new cutter as blut grind wheels can cause chips and make breakages more likely.

  24. gena88 Russian Federation

    Offline
    Joined:
    Jan 28, 2020
    Messages:
    14
    Location:
    Russia
    Чтобы при резке алмазным диском стекло не разбилось, нужно постоянно подавать небольшую струю воды на то место, где диск касается стекла. Срез получится ровным и без сколов.

  25. Tom Pedersen

    Tom Pedersen Denmark Subscriber

    Offline
    Joined:
    Nov 13, 2019
    Messages:
    74
    Location:
    Denmark
    THANK YOU FOR THAT gena88.
    JUST A TRANSLATION OF THE ABOVE.
    To prevent the glass from breaking when cutting with a diamond disc, you need to constantly apply a small stream of water to the place where the disc touches the glass. The cut will turn out smooth and without chips.
    Tom

  26. ColinG

    ColinG United Kingdom Subscriber

    Offline
    Joined:
    Oct 2, 2017
    Messages:
    2,902
